Product Overview
The MCS-ANY-16 matrix switcher system is a new type of high-definition matrix that realizes large-scale, cross-region audio and video signal transmission, processing and sharing. The number of matrix can increased on the basis of individual matrices to achieve the purpose of capacity expansion, and the matrix can define the number of inputs and outputs, which is highly scalable.
At first , the asymmetric design of the MCS-ANY-16 matrix switcher system allows for any combination and distribution of inputs and outputs without the need to specify the concept of inputs and outputs, thus conforming to the user's needs and improving flexibility of use. Secondly, the stacking visualization HDMI over IP matrix switcher also breaks the port limitation of traditional matrix. The number of ports of traditional matrices are limited, making it difficult to meet the needs of users, while the stacked matrix allows unlimited expansion through the fiber or network so that users can freely expand according to demand, improving scalability and convenience. Finally, the stacked visual HDMI over IP matrix to achieve preview,what you see is what you get. The traditional modular matrix doesn’t support the live preview of source and display. The user needs to preview through other devices, which it is very inconvenient, and the stacked HDMI over IP matrix can preview sources and displays through the preview function, greatly improving the convenience of use and user experience. The product can be widely used in broadcasting and television projects, multimedia conference halls, command centers, intelligent teaching, and other occasions.
Features
Support 16-channel multi-type video interface,any configuration for the input or output, 16 cards any combination.
Adopts single card and single channel design,more flexible configurationand maintenance,Built-in card intelligent identification technology,automatic detection of board type, plug and play.
Resolution: HDMI maximum resolution of 4K@60Hz.
Seamless switching technology, no black screen,blue screen, tearing,jitter and other phenomena during the switching process.
Support EDID management,it compatible with HDCP protocol.
Support subtitles platform function, it has visual control APP and integrated audio, video, control in one with comprehensive control of signals,scenes, users, such as audio and video signal switching.
Support fiber/network interface stacking.It has rich peripheral interfaces, including RS232,I0, network, optical fiber, etc.Rich peripheral interfaces, including RS232,IO, network, fiber optic and so on.
Supports 16-screen splitting and preview display.
Signal Card

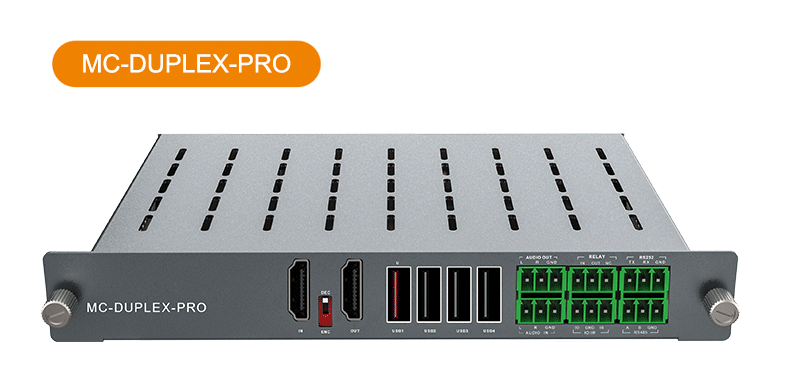

Cards Model:MC-DUPLEX-PRO
Supports 1HDMI input, 1HDMI output, 1audio input, and 1audio output.
Supports RS232, RS485, 10/IR, and Relay control interfaces,4 USB interfaces, and 1grounding interface.
A single interface machine has 16 window opening capabilities, supports multi-screen splicing, screen overlay, roaming, arbitrary scaling, and plan management functions;
The HDMI interface supports up to 3840x2160@60Hzinput.
The HDMI interface supports up to 3840x2160@60Hz output.

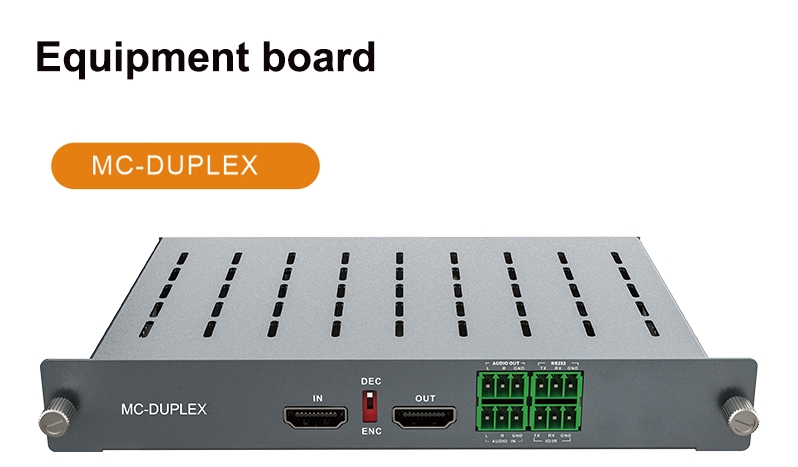

Model:MC-DUPLEX
Has 1 x HDMI input, 1 x HDMI output, 1 x audio input, 1 x audio output, 1 x LAN port, 1 x RS232, 1 x IR/IO multiplexing
Supports maximum resolution 3840X2160@30 (backward compatible with standard resolution)

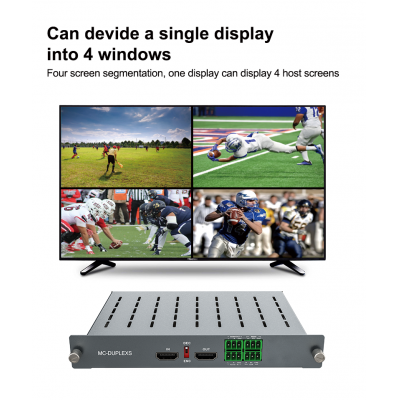

Input mode with more than 16 video distribution capabilities; output mode supports four-screen split
It can be set as input card or output card by dip switch.
Parameters

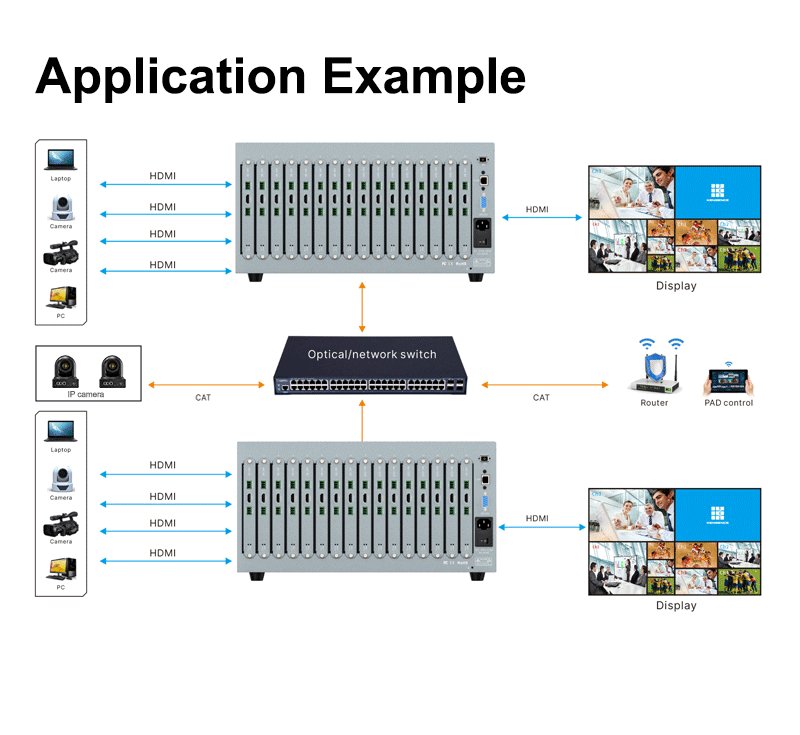

Application Example
