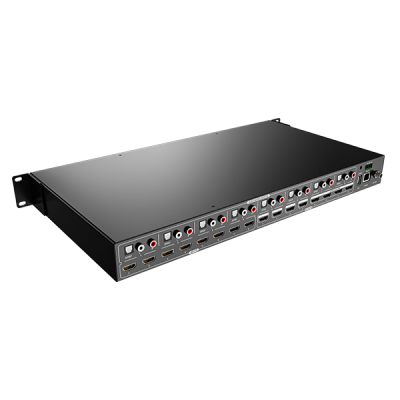

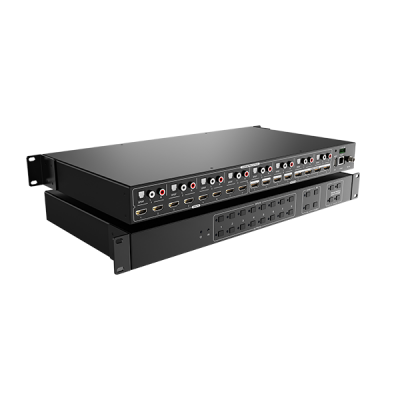

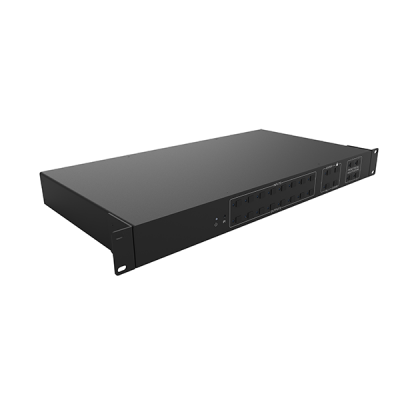

The KX-HDMI-88 is a professional 8x8 HDMI 2.0 Matrix Switcher with Audio Matrix. It includes 8 HDMI inputs, 8 HDMI outputs and the last four outputs with down-scaling function, which is designed for switching four HDMI2.0 and HDCP2.3 compliant signals. It also features 8 SPDIF and 8 analog audio outputs for audio matrix.The matrix switcher features comprehensive EDID management and advanced HDCP handing to ensure maximum functionality with a wide range of video sources.The matrix switcher not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.

  • Brand : KENSENCE
  • Model : KX-HDMI-88
  • Price : Discuss personally

Introduction

The KX-HDMI-88 is a professional 8x8 HDMI 2.0 Matrix Switcher with Audio Matrix. It includes 8 HDMI inputs, 8 HDMI outputs and the last four outputs with down-scaling function, which is designed for switching four HDMI2.0 and HDCP2.3 compliant signals. It also features 8 SPDIF and 8 analog audio outputs for audio matrix.The matrix switcher features comprehensive EDID management and advanced HDCP handing to ensure maximum functionality with a wide range of video sources.The matrix switcher not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.


Features

  • 8x8 HDMI 2.0 Matrix Switcher.

  • Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant.

  • Audio Matrix, audio out can be de-embedded from arbitrary input or output.

  • Individual volume adjustment on each L+R output.

  • Supports 4K to 1080p down-scaling up to 4 outputs.

  • HDMI out provides 2.5W to power Active Optical Cable (AOC).

  • HDMI Output support up to 5V500mA for AOC cable

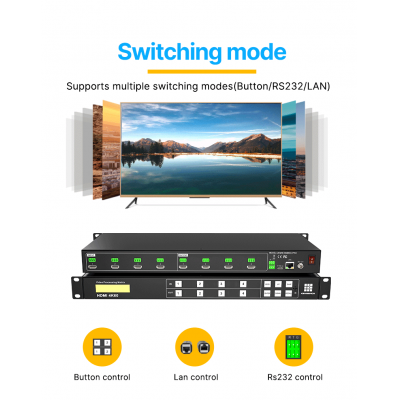

  • Controllable by front panel, IR, RS232 and TCP/IP.



Package List

  • 1x KX-HDMI-88

  • 6x Screws

  • 1x RS232 cable (3-pin to DB9)

  • 1x IR remote

  • 1x User manual

  • 2x Mounting ears

  • 4x Plastic cushions

  • 1x IR receiver

  • 1x Power adaptor (DC 24V 2.71A)

Note: Please contact your distributor immediately if any damage or defect in the components is found.


Specification

Video

Video Input

(8) HDMI

Input Connector

(8) Type-A female HDMI

HDMI Input Resolution

Up to 4K@60Hz 4:4:4, HDR

Video Output

(8) HDMI

Output Connector

(8) Type-A female HDMI

HDMI Output Resolution

Up to 4K@60Hz 4:4:4, HDR10 and Dolby Vision

HDMI Output

Supports up to 5V500mA for AoC cable

HDMI Version

Up to 2.0

HDCP Version

Up to 2.3

HDMI Audio Signal

LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.

Digital Audio Output

Output

(8) Digital SPDIF audio

Output Connector

(8) Toslink connector

Digital SPDIF Audio Format

Supports PCM, Dolby Digital, DTS, DTS-HD

Frequency Response

20Hz – 20KHz,±1dB

Max Output Level

±0.05dBFS

THD+N

< 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)

SNR

> 90dB, 20Hz-20KHz bandwidth

Crosstalk Isolation

< -70 dB, 10 kHz sine at 0 dBFS level (or max level before clipping)

Noise

-90dB

Analog Audio Output

Output

(8) Analog L/R Audio

Output Connector

(8) L&R (RCA)

Digital SPDIF Audio Format

PCM 2CH

Frequency Response

20 Hz to 20 kHz, ±1dB

Max Output Level

2.0Vrms ± 0.5dB. 2 V = 16 dB headroom above -10dBV (316 mV) nominal consumer line level signal

THD+N

< 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)

SNR

> 80dB, 20Hz-20 kHz bandwidth

Crosstalk Isolation

< -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping)

L-R level deviation

< 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping)

Output load capability

1k ohm and higher (supports 10x paralleled 10k ohm loads)

Noise

-80dB

Control

Control port

(1) FIRWARE, (1) IR EYE, (1) RS232, (1) TCP/IP,

Control Connector

(1) USB-A, (1) 3.5mm jack, (1) 3-pin terminal block, (1) RJ45

General

Transmission Distance

4K/60Hz/444 5m,4K/60Hz/420 10m,1080P 15m

Bandwidth

18Gbps

Operation Temperature

-5℃  ~ +55

Storage Temperature

-25℃  ~ +70

Relative Humidity

10% ~ 90%

External Power Supply

Input: AC 100V~240V, 50/60Hz; Output : 24V DC 2.71A

Power Consumption

24W

Dimension (W*H*D)

436.4mm*44mm*236mm

Net Weight

3kg
