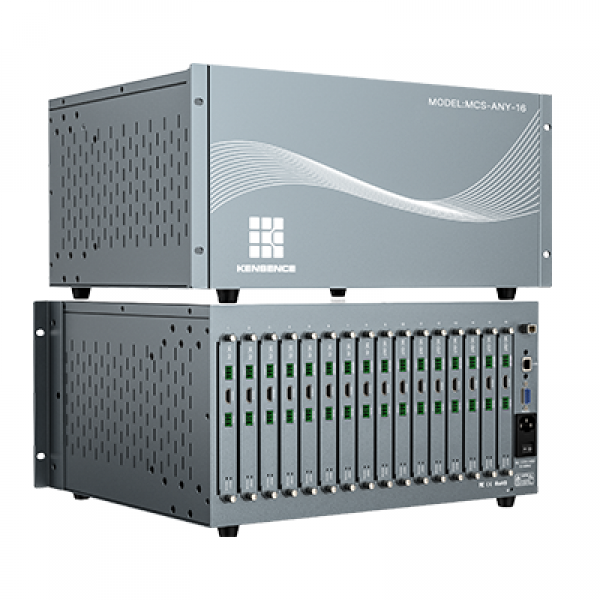

Product Overview
The MCS-ANY-16 represents a cutting-edge advancement in matrix switching technology, featuring a modular asymmetric card architecture. This 4K60Hz visual matrix solution delivers instantaneous, glitch-free switching capabilities while supporting ultra-high-definition resolutions up to 4K@60Hz. Its innovative fiber/network expansion interface enables multi-unit cascading for creating distributed AV systems across wide geographic areas. The completely customizable I/O card configuration provides exceptional system adaptability to meet evolving requirements.
With integrated visual preview and live monitoring functions, the system ensures completely reliable signal management. Ideal for mission-critical applications including broadcast facilities, digital signage networks, emergency operation centers, and next-generation educational environments.
Features
Support 16-channel multi-type video interface,any configuration for the input or output, 16 cards any combination.
Adopts single card and single channel design,more flexible configurationand maintenance,Built-in card intelligent identification technology,automatic detection of board type, plug and play.
Resolution: HDMI maximum resolution of 4K@60Hz.
Seamless switching technology, no black screen,blue screen, tearing,jitter and other phenomena during the switching process.
Support EDID management,it compatible with HDCP protocol.
Support subtitles platform function, it has visual control APP and integrated audio, video, control in one with comprehensive control of signals,scenes, users, such as audio and video signal switching.

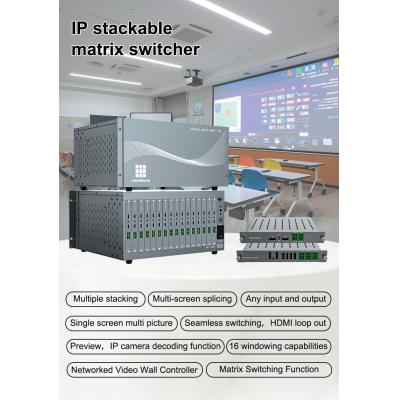

Support fiber/network interface stacking.It has rich peripheral interfaces, including RS232,I0, network, optical fiber, etc.Rich peripheral interfaces, including RS232,IO, network, fiber optic and so on.

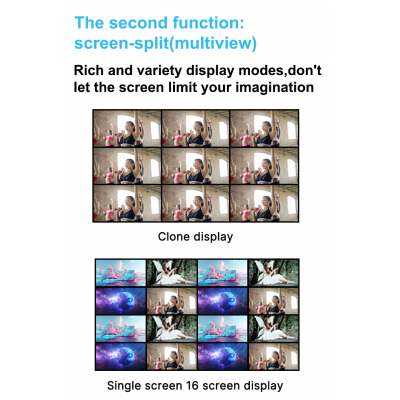

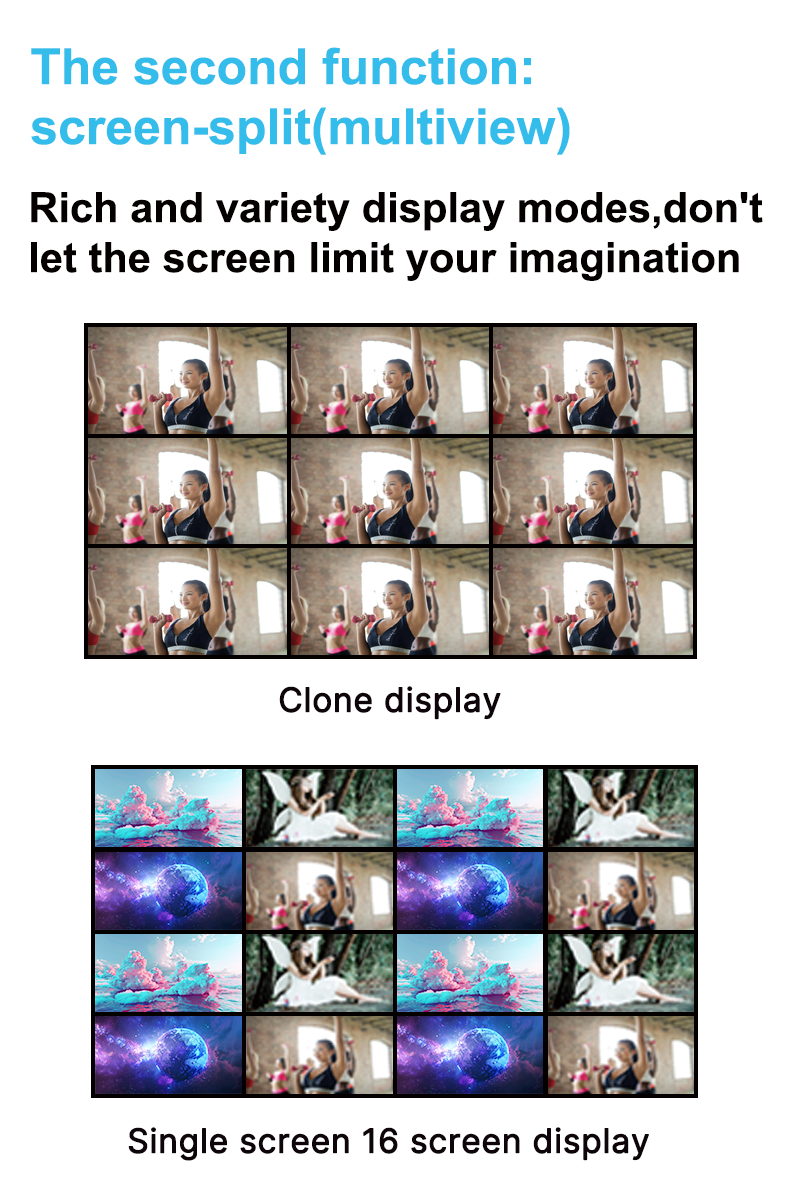

Supports 16-screen split and preview echo.
Signal Card

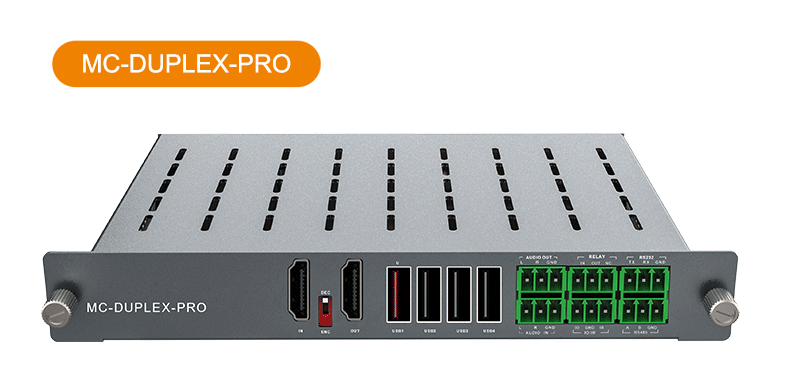

Cards Model:MC-DUPLEX-PRO
Supports 1HDMI input, 1HDMI output, 1audio input, and 1audio output.
Supports RS232, RS485, 10/IR, and Relay control interfaces,4 USB interfaces, and 1grounding interface.

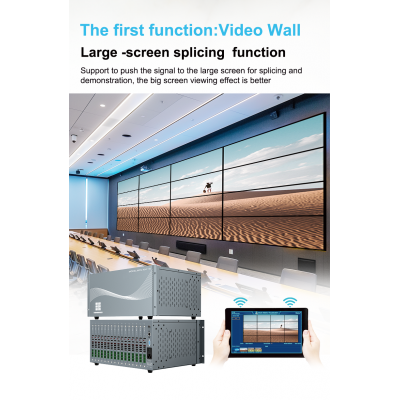

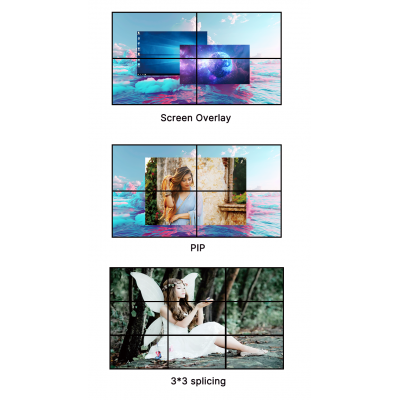

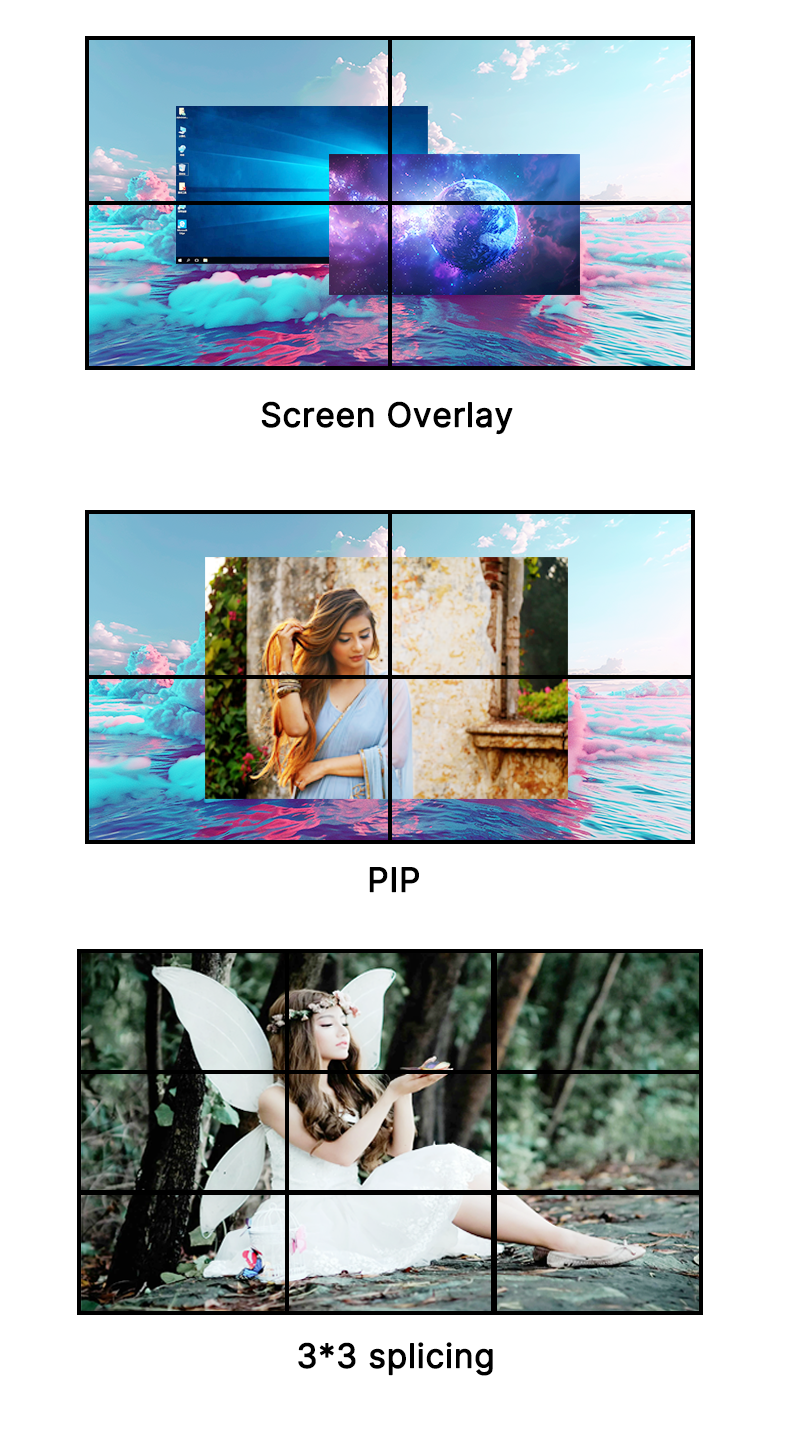

A single interface machine has 16 window opening capabilities, supports multi-screen splicing, screen overlay, roaming, arbitrary scaling, and plan management functions;
The HDMI interface supports up to 3840x2160@60Hzinput.
The HDMI interface supports up to 3840x2160@60Hz output.

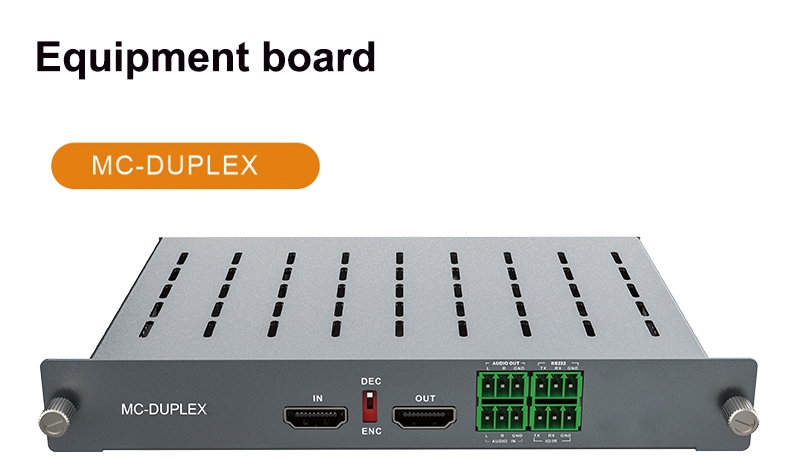

Model:MC-DUPLEX
Has 1 x HDMI input, 1 x HDMI output, 1 x audio input, 1 x audio output, 1 x LAN port, 1 x RS232, 1 x IR/IO multiplexing
Supports maximum resolution 3840X2160@30 (backward compatible with standard resolution)

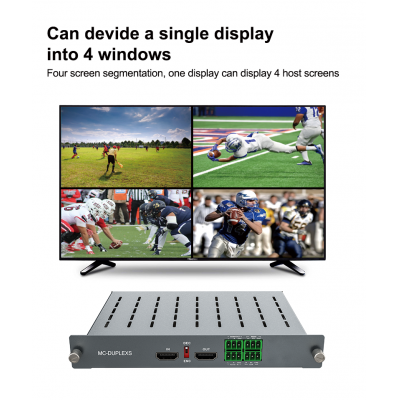

Input mode with more than 16 video distribution capabilities; output mode supports four-screen split
It can be set as input card or output card by dip switch.
Parameters
Name | 16-channel customizable input/output HD seamless IP-based hdmi over ip matrix | |
Card slot | 16 channel (the number of input or output is decided by yourself within the 16 channels.) | |
Control | ||
Network control | control protocol | TCP/IP |
Connector | You can use PC or tablet control devices through our own APP for previewing | |
Color space | Supports RGB444, YUV444, YUV422 color space and x.v.Color extended color gamut standard | |
Input voltage | Voltage 100VAC-260VAC, 50/60Hz, international adaptive power supply 23W (max)/0.5W (standby) | |
Size(w*h*d) | 440*221*374mm(5U) | |
Electrostatic protection | Body Discharge Mode: ± 8kV (Air Gap Discharge) ± 4kV (Contact Discharge) | |
Working temperature | 0℃---40℃ | |
Storage temperature | -20℃---60℃ | |

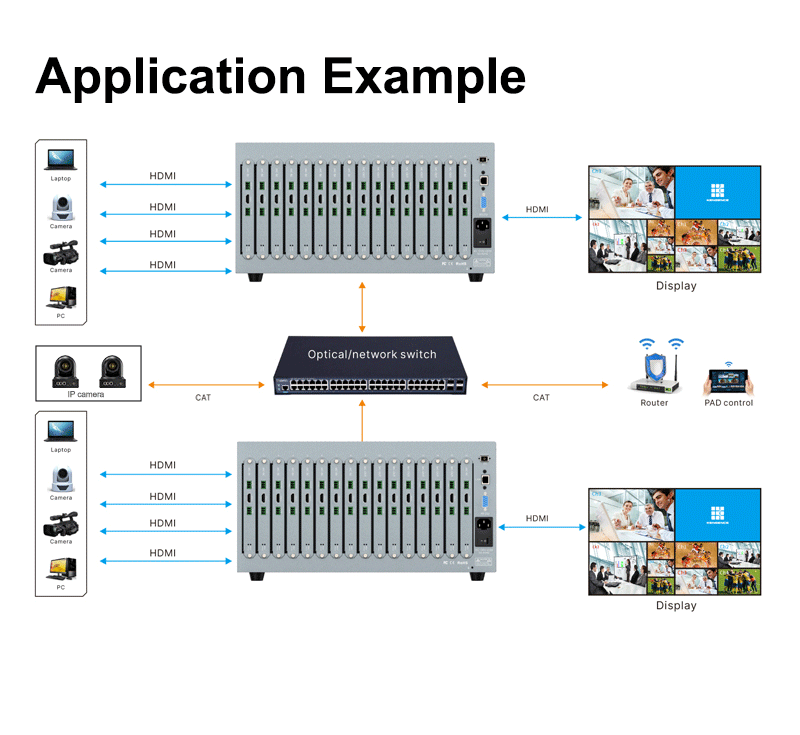

Application Example
Recommendations our stackable matrix switcher, a powerful and cost-effective solution that stands out as your top choice for hdmi over ip matrix. This versatile matrix switcher not only enhances audio and video signal management but also offers unparalleled flexibility and scalability for various applications.
