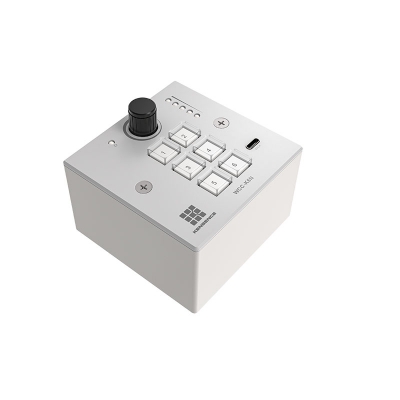

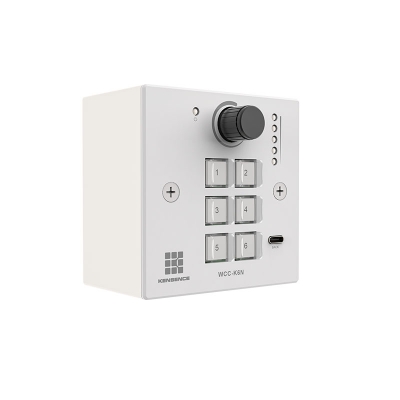

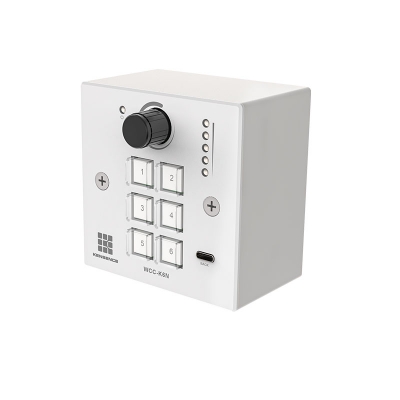

The WCC-K6N smart control panel supports custom command programming, allowing each physical button to support multiple commands to be sent simultaneously or with delays, achieving one-touch trigger control for complex scenarios. This device is compatible with the RS232 communication protocol, seamlessly integrating with central control systems, making it suitable for environments such as conference rooms, smart homes, and exhibition halls that require multi-device linkage. Through the command group configuration feature, users can flexibly set the device control sequences corresponding to each button, meeting diverse scene control needs and enhancing automation control efficiency.
Product Features:
External power supply interface: 5V/1.5A

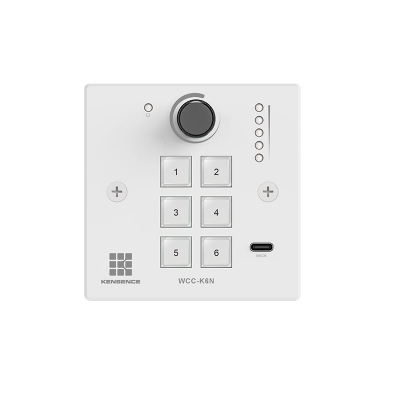

Standard 86-type panel dimensions (86×86mm)
6 independent backlit buttons, each customizable with multiple commands

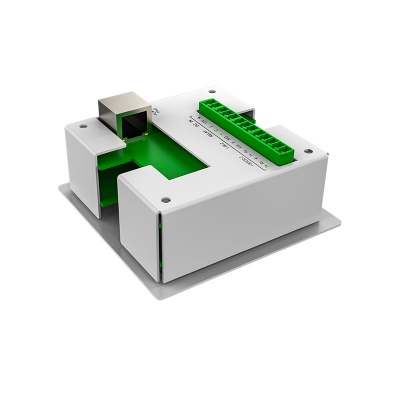

Supports UDP/TCP control, 2× RS232/RS485 ports, 2× Relay outputs, 1× RJ45 port, and 2× IR control interfaces
Programmable buttons with customizable trigger modes (single-click, double-click, long-press) and button grouping capability
Configurable RS232 baud rate
Extendable for more advanced scenarios when integrated with central control systems
Includes rotary knob for volume/lighting adjustment and other operations
Specification

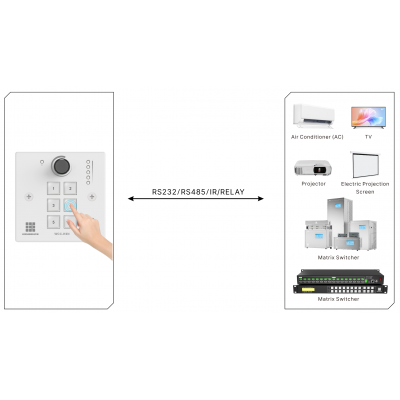

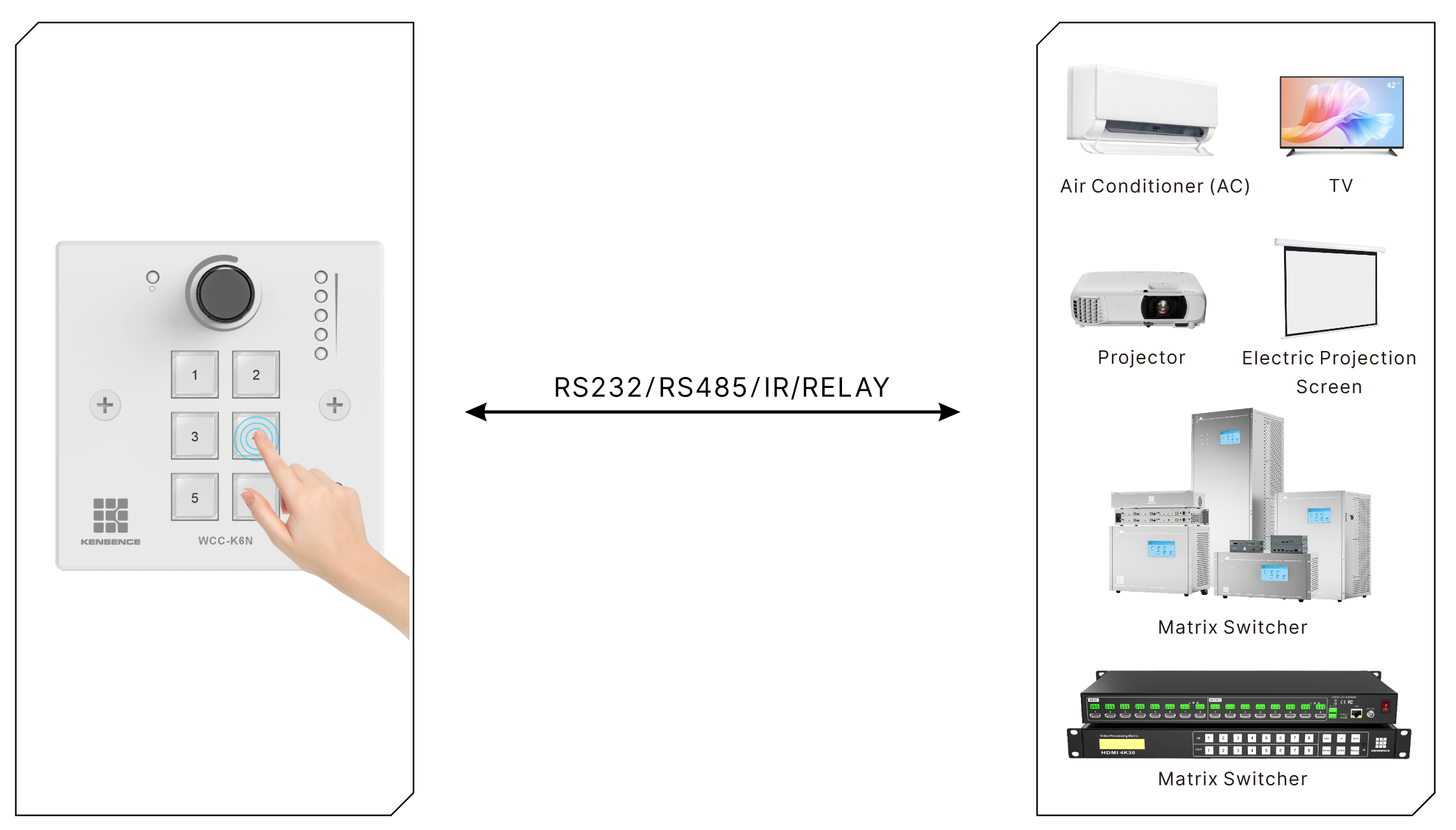

Application Diagram
