The cloud media intelligent integration platform adopts the popular HDBT technology, which is transmitted by the network and will be dispersed in various computer rooms.KVM nodes are combined to use a set of keyboard and mouse to quickly switch and manage remote computers with convenient and fast mobile visualization.

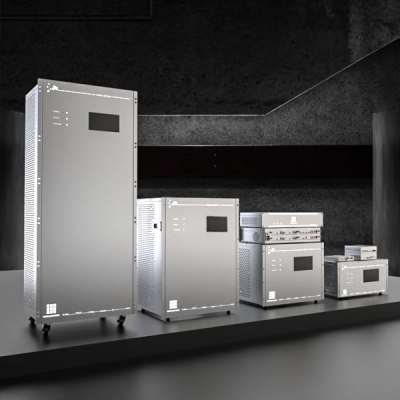

System host overview

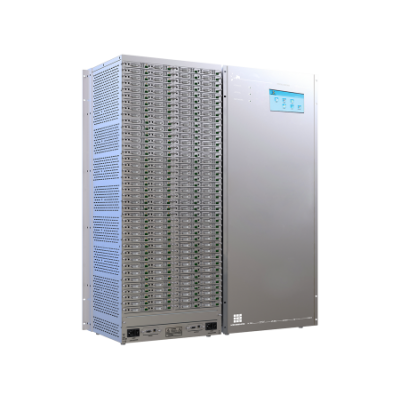

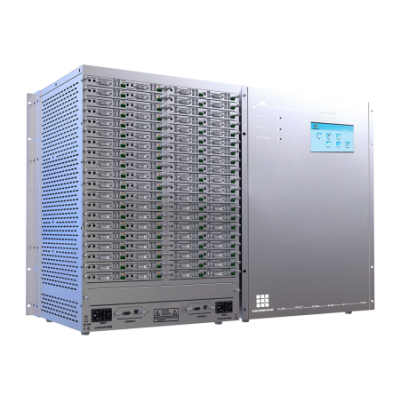

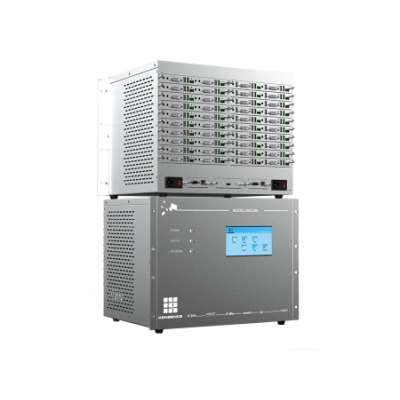

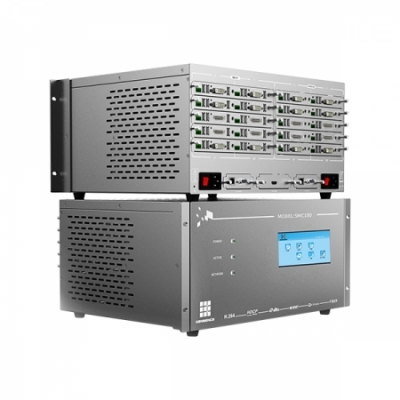

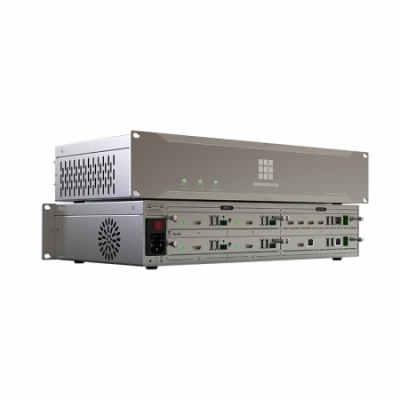

The SMC series is a powerful and flexible 4K ultra HD hybrid matrix. It is designed with high-performance hardware and integrates audio, video and control. It perfectly supports all kinds of audio and video signal switching processing, such as HDMI/DVI/HDCI/HDBaseT. /Fiber/3GSDI/IP/VGA/CVBS/YpBpr and AUDIO signals, support 4K@60Hz resolution input and output, combined with large screen splicing,seamless switching, seamless backup, smart board monitoring, KVM transmission and other functions,products Widely used in multimedia conference rooms, command and control centers, smart cities, radio and television, traffic management centers and other fields.
> Support image splicing function.
> Modular structure design, can flexibly configure the input and output channel signal types.
> Support HDMI,DVI,HDBaseT,3GSDI,VGA,CVBS,Ypbpr,HDCI, Fiber signal formats transmission and H.323, SIP transmission protocol, seamless A/V Over IP Streaming, IP surveillance system, video conference system and recording system.
> Each board supports RS-232 pass-thru transmission, supports the control signal of the central control functions, in enabling the peripheral equipment’s centralized control.
> Support glitch-free seamless switching technology.
> Intelligent EDID management switching technology and HDCP authorization.
> Each input channel supports color, brightness, resolution, scaling and many other image adjustments.
> Support resolutions up-to 4K @ 60Hz
> Support HDMI2.0, DP1.1, HDCP2.2
> Support Deep Color 48/ 36/30/24-bit, YUV 4: 2: 2/4: 4: 4;
> Each output channel can be individually defined 16 different of common resolution fixed output;
> Support TCP, UDP, IP, HTTP, NTP, RTP, IGMP, RTSP, RTCP network protocol
> Support H.264 Baseline, Main High, profile coding, advanced video pre-processing MBAFF algorithm
> Support optical fiber transmission technology, maximum transmission distance up-to 80 km.
> Support smart signal fail safe switching backup.
> Support POC power supply for twisted pair transmitter and receiver (HDBaseT transmission)
> Support equipment temperature monitoring, video ports status monitoring.
> Support input / output ports software’s discovering and adjustment functions.
> Support front panel touch screen control and dual RS-232, dual TCP / IP controls.
> Front panel 7-inch high-definition true color touch screen can receive feedback in real-time status.
> Dual redundant power supply design, supports 7 * 24 hours of uninterrupted operations.
System control host

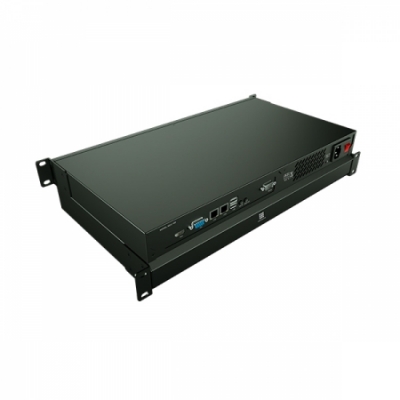

The MCC200 control host is a customized Linux system that supports "cloud media intelligent integrated platform", "cloud media interactive splicing system",The installation and use of control software such as "Intelligent Conference Reservation System Platform" and "WEB Programmable Central Control Platform" are arranged at any node of the network for use in the systemFor control and switching, the control host supports computer control, wireless PAD control, and the third-party central control device connection control. Do more from the designProfessional features such as access, stability, and professionalism.

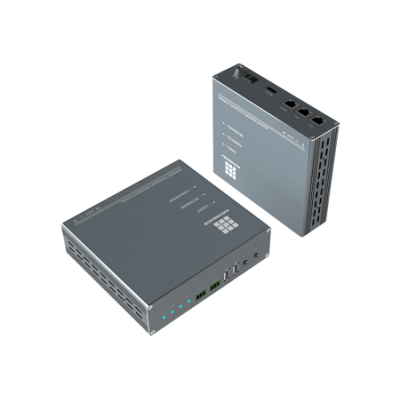

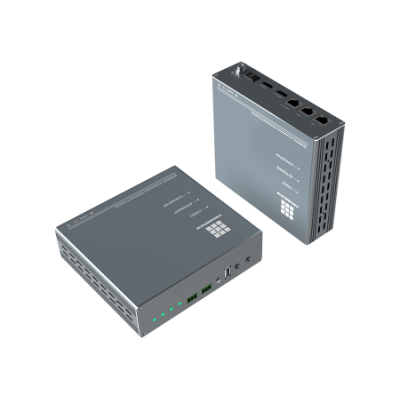

Network extender Product Introduction
>Support USB 2.0 control;
>Support bidirectional RS-232 serial port transmission;
>Support 10M/100M Ethernet function;
>Support 4K@60Hz and 3D transmission 100 meters;
>Compatible with HDCP 2.2 and DVI 1.0 protocols;
>Support full HD resolution is 1080P@60Hz@24/36/48bit/pixels;
>Compatible with HDMI 1.4 and HDMI 2.0 (4K/2K@60Hz YcbCr 4:2:0);
>Support HDBaseT 2.0 standard, using CAT6/7 network cable
transmission distance up to 150 meters;
>Support HD audio formats with LPCM2/5.1/7.1CH, Dolby Digital,
DTS, Dolby TrueHD
>DTS-HD Master Audio;

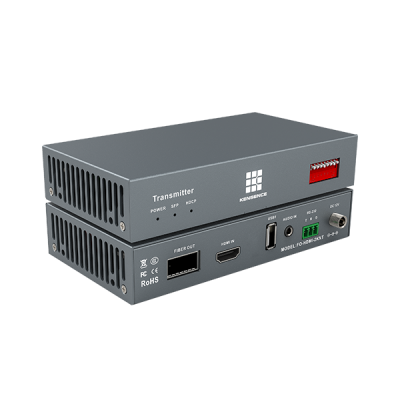

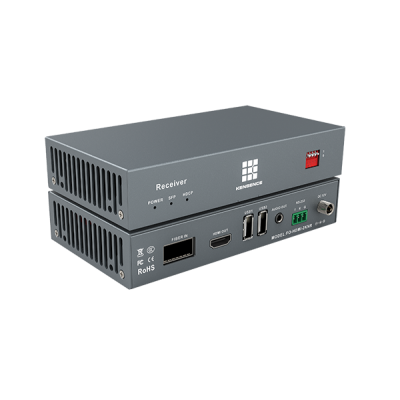

Multi-service fiber optic transmitter
>Embedded hardware design, high stability;
>Maximum support 4K@60Hz 4:2:0 resolution;
>Support EDID function and dialing function;
>Support long-distance KVM transmission function;
>Support long-distance transmission of optical
>Support 3.5mm audio embedding and audio
>Industrial design, 7*24 hours operation;
>Support signal 2KM transmission (upgradable
fiber optic module);
Name Multi-service fiber optic transmitter
Input Output Transmitting：HDMI in，Fiber out，
Receiving :Fiber in， HDMI out
Color space Support RGB444, YUV color space
Resolution Supports up to 4K@60Hz
distance 2KM (upgradeable)
Protocol HDMI 2.0 ,USB 2.0
Power supply DC 12V
4K@60Hz cross-screen machine
>Modular plug-in design
>Support audio add-on de-embedding
>Supports four-screen split function and support sproduct stacking function
>Maximum support 4K@60Hz resolution 4:2:0 input and output
>Support KVM cross-screen control (1 set of mouse and keyboard control multiple computers)
>Support HDMI/DVI/VGA/CVBS/YPbPr/HDBaseT/Fiber/HDCI/IP Multiple signal inputs The output supports 4 channels of HDMI signal output + 1 channel 4 picture segmentation
Name 4K@60Hz cross-screen machine
Input signal HDMI/DVI/VGA/CVBS/YPbPr/HDBaseT/
Fiber/HDCI/IP etc multiple signal
Output signal HDMI
Resolution Up to 4K@60Hz (downward compatible)
Protocol Support HDMI 1.4 ,USB 2.0 protocol
Dimension (mm) 482x88x250(L/H/D)
