Product Overview

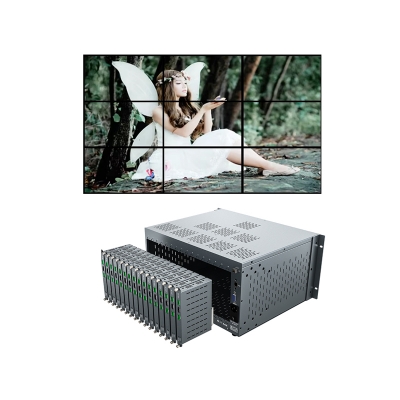

MCS-ANY-16 is a new-generation stacked visual HD 4K60Hz video Matrix Switcher featuring an asymmetric plug-in card design. It supports seamless and rapid switching, with a maximum resolution of 4K@60Hz. The matrix can be interconnected with multiple units via fiber optic/network for capacity expansion, enabling large-scale,cross-regional AV signal transmission, processing, and sharing with ease. Additionally, the matrix allows customizable input/output channel configurations, offering strong scalability.
Moreover, the matrix provides visualized preview and real-time monitoring for true "what-you-see-is-what-you-get" performance. This product is widely applicable in broadcast & TV engineering,multimedia conference rooms,command centers, smart education, and other scenarios.
Features
Support 16-channel multi-type video interface,any configuration for the input or output, 16 cards any combination.
Adopts single card and single channel design,more flexible configurationand maintenance,Built-in card intelligent identification technology,automatic detection of board type, plug and play.
Resolution: HDMI maximum resolution of 4K@60Hz.
Seamless switching technology, no black screen,blue screen, tearing,jitter and other phenomena during the switching process.
Support EDID management,it compatible with HDCP protocol.
Support subtitles platform function, it has visual control APP and integrated audio, video, control in one with comprehensive control of signals,scenes, users, such as audio and video signal switching.
Support fiber/network interface stacking.It has rich peripheral interfaces, including RS232,I0, network, optical fiber, etc.Rich peripheral interfaces, including RS232,IO, network, fiber optic and so on.
Supports 16-screen splitting and preview display.
Signal Card

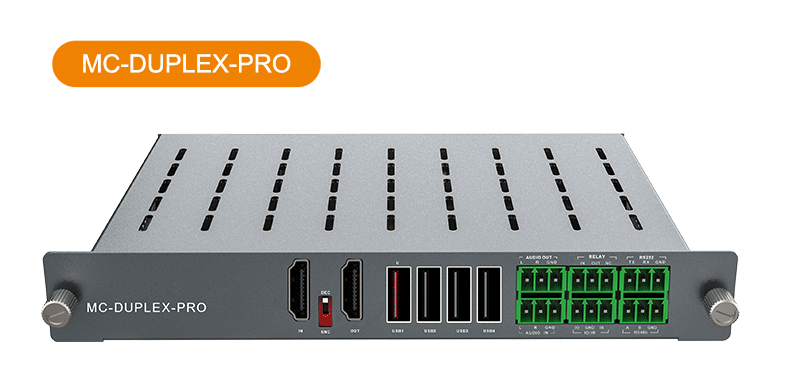

Cards Model:MC-DUPLEX-PRO
Supports 1HDMI input, 1HDMI output, 1audio input, and 1audio output.
Supports RS232, RS485, 10/IR, and Relay control interfaces,4 USB interfaces, and 1grounding interface.
A single interface machine has 16 window opening capabilities, supports multi-screen splicing, screen overlay, roaming, arbitrary scaling, and plan management functions;
The HDMI interface supports up to 3840x2160@60Hzinput.
The HDMI interface supports up to 3840x2160@60Hz output.

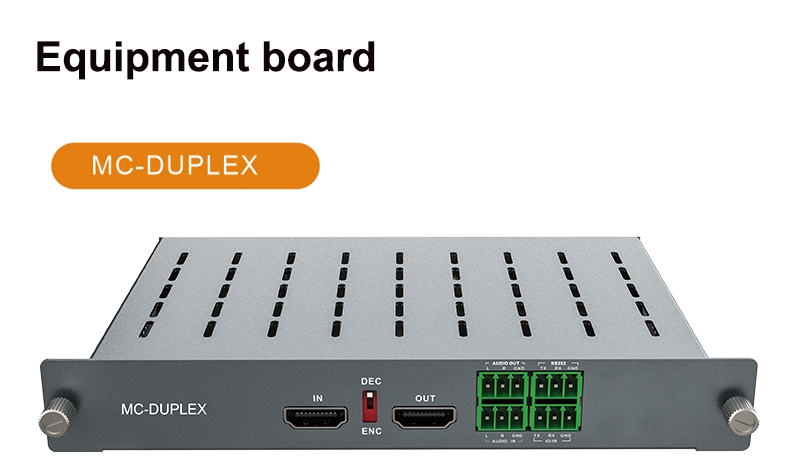

Cards Model:MC-DUPLEX
Has 1 x HDMI input, 1 x HDMI output, 1 x audio input, 1 x audio output, 1 x LAN port, 1 x RS232, 1 x IR/IO multiplexing
Supports maximum resolution 3840X2160@30 (backward compatible with standard resolution)
Input mode with more than 16 video distribution capabilities; output mode supports four-screen split
It can be set as input card or output card by dip switch.
Parameters
Name | 16-channel customizable input/output HD seamless IP-based hdmi over ip matrix | |
Card slot | 16 channel (the number of input or output is decided by yourself within the 16 channels.) | |
Control | ||
Network control | control protocol | TCP/IP |
Connector | You can use PC or tablet control devices through our own APP for previewing | |
Color space | Supports RGB444, YUV444, YUV422 color space and x.v.Color extended color gamut standard | |
Input voltage | Voltage 100VAC-260VAC, 50/60Hz, international adaptive power supply 23W (max)/0.5W (standby) | |
Size(w*h*d) | 440*221*374mm(5U) | |
Electrostatic protection | Body Discharge Mode: ± 8kV (Air Gap Discharge) ± 4kV (Contact Discharge) | |
Working temperature | 0℃---40℃ | |
Storage temperature | -20℃---60℃ | |

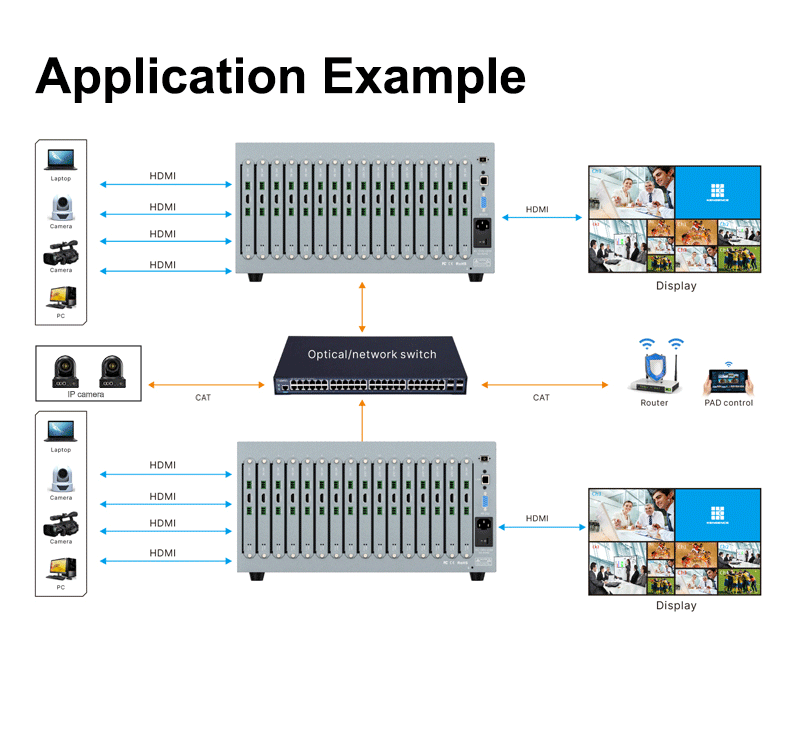

Application Example
Recommendations our stackable matrix switcher, a powerful and cost-effective solution that stands out as your top choice for hdmi over ip matrix. This versatile matrix switcher not only enhances audio and video signal management but also offers unparalleled flexibility and scalability for various applications.
