Product Description

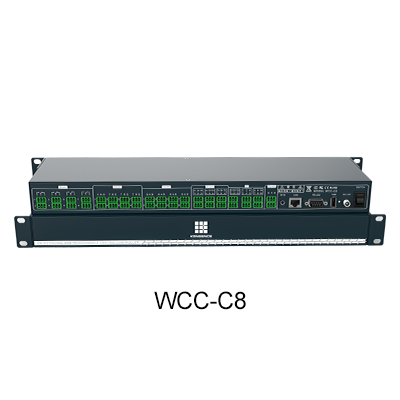

WCC-C8 is the central control interface machine of the distributed programmable system independently developed by Kensence. It can be matched with the central control server and adopts Open programmable control platform,humanized operation interface, interactive control structure, seamless connection with digital conference system products.
Proudct features
8 RS-232/485 control ports (support 115200bps and below), can send and receive RS-232,
RS-485 serial data;
8 digital I/O and 8 weak relay RELAY ports, used to control peripheral equipment, such as opening/closing
curtains, raising/lowering projectors, lighting on/off, etc.;
Support 8 IR infrared emission ports, which can realize remote control of DVD, CD, MD player and projector;
1 RJ-45 interface, support UDP client, used to realize remote control;
1 USB2.0 interface, used to connect a computer to set up the control host and upgrade the network;
1 IR infrared learning interface, which can save infrared data to the host for subsequent engineering or
maintenance upgrades;
1 RS-232 port (support 115200bps);
Support to expand the device interface;Support equipment cascade control function;
Specification
