2022-12-02 16:01:01   87

DMC (Display and control all-in-one machine) is an intelligent management and control collaboration system based on AVC technology. It provides a complete solution of video, audio and control for audio and video applications in command and control centers, emergency dispatch centers and large conference centers. Adopt B/S architecture, no need to install applications, can access and control across platforms and systems, manage all devices in the system through a set of customized exclusive interface, realize local preview of video signal and splicing layout, and control signal source and big data in real time. Screen display status, intuitive touch control.The signal source can be windowed, superimposed, cross-screen, roaming, zoomed display at any position on the splicing wall, and supports multiple signal sources on the wall, splicing, roaming, cross-screen, zoom in and out, picture-in-picture, picture-out-picture, and screen superimposition Display functions in various ways.

  • Brand : KENSENCE
  • Model :
  • Price : Discuss personally

Product Description

DMC (Display and control all-in-one machine) is an intelligent management and control collaboration system based on AVC technology. It provides a complete solution of video, audio and control for audio and video applications in command and control centers, emergency dispatch centers and large conference centers. Adopt B/S architecture, no need to install applications, can access and control across platforms and systems, manage all devices in the system through a set of customized exclusive interface, realize local preview of video signal and splicing layout, and control signal source and big data in real time. Screen display status, intuitive touch control.The signal source can be windowed, superimposed, cross-screen, roaming, zoomed display at any position on the splicing wall, and supports multiple signal sources on the wall, splicing, roaming, cross-screen, zoom in and out, picture-in-picture, picture-out-picture, and screen superimposition Display functions in various ways.


Proudct features

  • Realize the display functions of multiple signal sources on the wall, splicing, roaming, cross-screen,

    zooming in and out, picture-in-picture, picture-out-picture, picture superimposition, etc.;

  • Supports roaming, superimposing and zooming of all signals in the full screen range, and supports

    single-screen multi-window segmentation;

  • Support Android system tablet/mobile APP installation; the signal source can be controlled by various

    functions on the tablet/mobile phone;For example, scene save, delete, switch control;

  • Support WEB control, which can be used for computer/mobile phone/tablet to switch scenarios through

    WEB browser;

  • Support more than 1000 pre-plan scenes to be saved;

  • A variety of scenes can be preset in advance, easy to switch between various scenes, support scene patrol,

    and can be customized Round robin interval;

  • Scene switching delay<30ms, seamless, no jam, no blue screen, no splash screen; support multi-level

    user management;

  • Support ultra-high-definition subtitles function, the font, color, size, background color, and background

    transparency of the subtitles can be flexibly selected;

  • Supports ultra-high-definition static basemaps, which are quick and easy to replace, making the

    large-screen basemaps more colorful;

  • Support independent monitor screen display; can control all control equipment with RS232\IR and its

    protocols in the world;

  • Can control electric curtains, projector hangers, liquid crystal lifting frames, etc. Can be docked with

    access control systems, fire-fighting signals,Monitoring system docking;



Specification

Model number

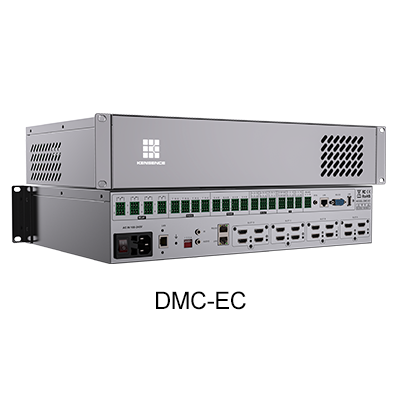

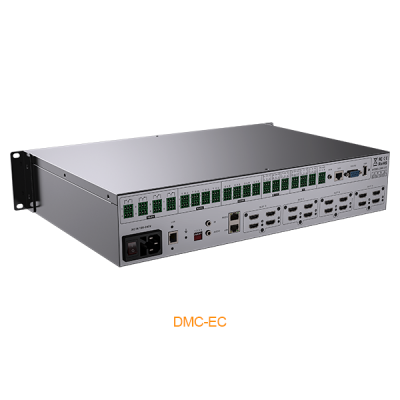

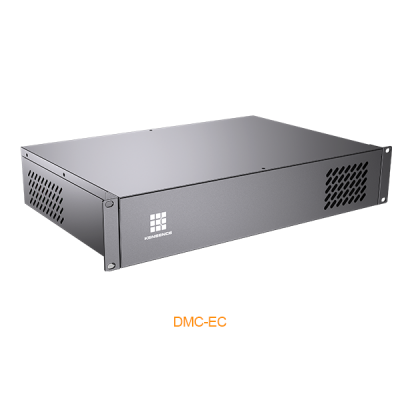

DMC-EC

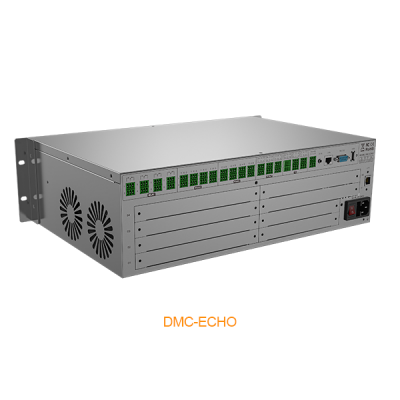

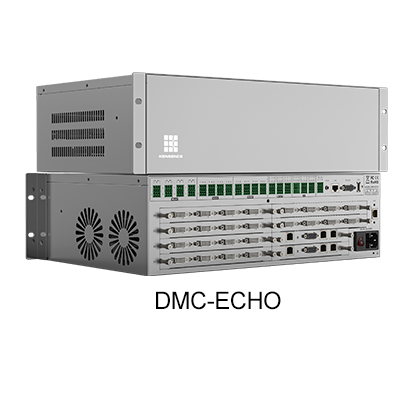

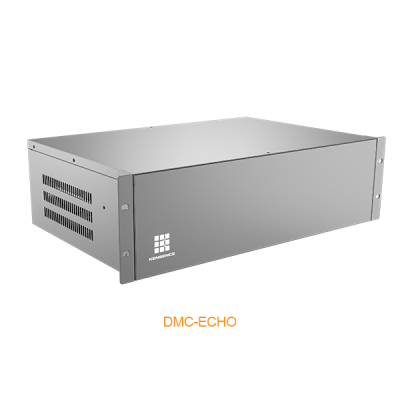

DMC-ECHO

input/output number

8 Input/8 output

24 channels(8-16)

Interface type

HDMI:Standard HDMI interface(19PIN)

VGA: DB15PIN (VGA), DVI: DVI-I interface (only receive DVI-D signal),

HDMI: standard HDMI interface (19PIN), CVBS: BNC video interface,SDI: BNCVideo interface, Ypbpr: DB15PIN (requires component

interface to VGA adapter cable), inputNumber of channels: 4 channels

(standard EDID)

input resolution

HDMII:1920x1200@60Hz

And downward compatible;

VGA input up to:1920x1080@60Hz,support common resolution:848x480@60Hz,640x480@60Hz,800x600Hz,1280x720@60Hz,2360x768@60Hz,1366x768@60Hz,1024x768@60Hz,1440x900@60Hz,1280x1024@60Hz,1680x1050@60Hz,1920x1080@60Hz,1600x1200@60Hz;

DVI:1920x1200@60Hz and downward compatible;

HDMII:1920x1200@60Hz and downward compatible;

CVBS:576i/480i;

SDI:HD-SD/3G-SDI;

YPBPR:480p,576p,720p,1080p;

output resolution

Up to:1920x1080@60Hz

Swap kernel

High-speed switching cores such as single-channel 6.75Gbps rate are used to ensure signal switching speed

Control port

RS-232,9pin COM connector,with serial port loop-out function, Ethernet network control, RJ485 control

Display method

Signal screen 2-4 window,multi-screen roaming, overlay, arbitrary zoom

Window size

Smoothly adjust the size of the input signal window and move the position of the input signal window

RS-232/RS-485

8 channels each. Freely configurable RS-232 or RS-485 to support the configuration of 115200bps and below baud rate

RELAY

8 channels

I/O

8 channels

IR channels

8 way to send ,1 way to receive

Control interface

RJ-45 *1、USB 2.0*1、RS-232*1、RS-485*1

voltage

Input AC 220V-240V 60Hz

Operating temperature

0℃~70℃
