Product Description
CAT-HDMI-NT/R is a multifunctional HDMI exntender. The product can extend the HDMI signal by 100/150 meters by using the CAT6/CAT7 network cable. It supports the HDBaseT 2.0 standard to achieve zero delay and no delay between the signal source and the display device. The role of compression and long-distance transmission. The transmitter and receiver of the device are respectively equipped with a USB slave interface and a main interface for KVM signal transmission. It also supports two-way infrared remote control signal and two-way RS-232 control signal transmission. Therefore, users can receive at 150 meters away The input device can be controlled by the terminal, and the output device can also be controlled by the transmitting terminal 150 meters away. The product adopts a new generation of low-power chip processing method, supports 24-hour uninterrupted work, low heat generation, stable work, simple installation, the product is suitable for video conference systems, multimedia signal broadcasting, security monitoring, radio and television, smart communities, etc. Kind of application areas.
Features
>Support USB 2.0 control;
>Support bidirectional RS-232 serial port transmission;
>Support 10M/100M Ethernet function;
>Support 4K@60Hz and 3D transmission 100 meters;
>Compatible with HDCP 2.2 and DVI 1.0 protocols;
>Support full HD resolution is 1080P@60Hz@24/36/48bit/pixels;
>Compatible with HDMI 1.4 and HDMI 2.0 (4K/2K@60Hz YcbCr 4:2:0);
>Support HDBaseT 2.0 standard, using CAT6/7 network cable transmission distance up to 150 meters;
>Support HD audio formats with LPCM2/5.1/7.1CH, Dolby Digital, DTS, Dolby TrueHD
>DTS-HD Master Audio;

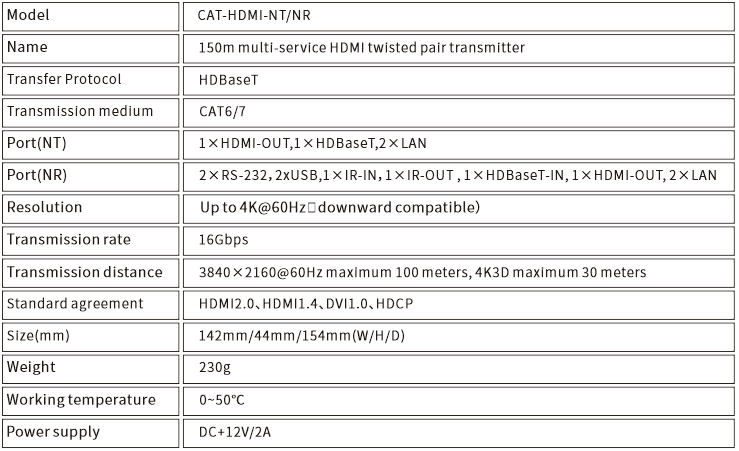

Technical parameter
Typical topology
