Product description

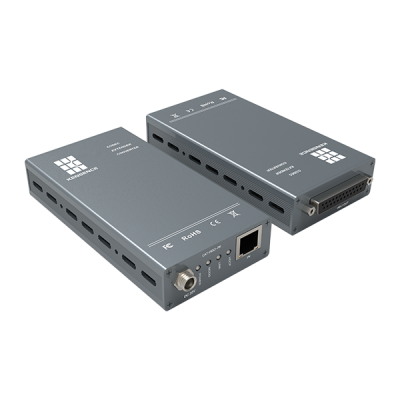

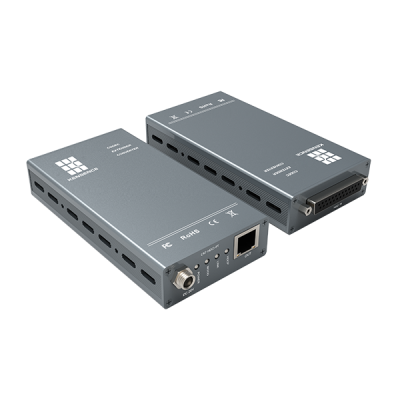

CAT-HDCI-PT/PR is a set of network transmission equipment specially developed and designed for POLYCOM terminals. The transmitter supports HDCI signal input, CAT signal output, and the receiver supports CAT signal input and HDCI signal output, and supports a maximum resolution of 1080P @60Hz, the longest transmission distance can reach 70 meters, it can be used with POLYCOM terminal and Kensence Matrix Switch equipment.
Product features
1. Support signal 70 meters long-distance transmission;
2. Support POC power supply;
3. Support resolution 1080P@60Hz;
4. Support HDCI signal transmission in the form of network;
5. Support multiple color spaces, support video conversion and frequency multiplication function;
6. Support HDMI1.4, HDCP1.2, DVI1.0 protocol;
Technical Parameters
Product Model number | CAT-HDCI-PT | CAT-HDCI-PR |
Input/Output | HDCI signal input, network signal output | Network signal input, HDCI signal output |
Transmission protocol | Support HDMI1.4, DVI1.0, HDCP protocol | |
Color space | Support RGB444/YUV444/YUV422 color space | |
Resolution | 480i~1080p@60Hz(HDTV standard) | |
Voltage | DC 20V | |
Transmission distance | 70m | |
Size/Weight | 102x25x79（mm）/0.3kg | |
