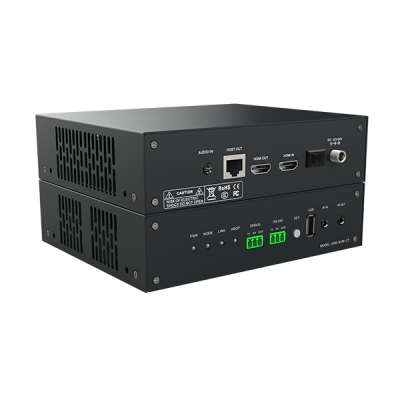

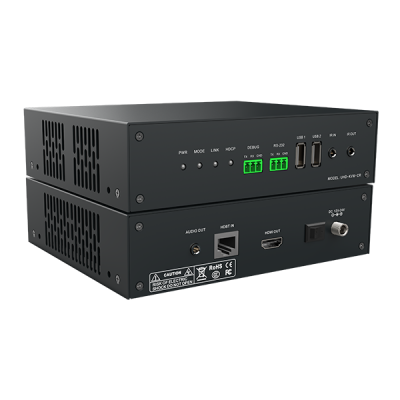

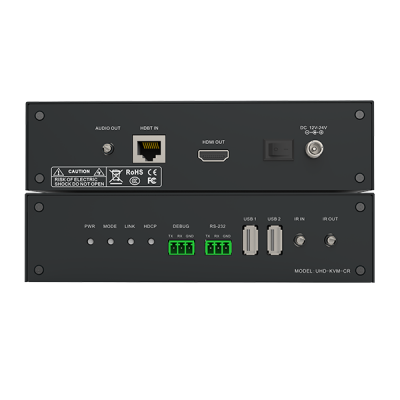

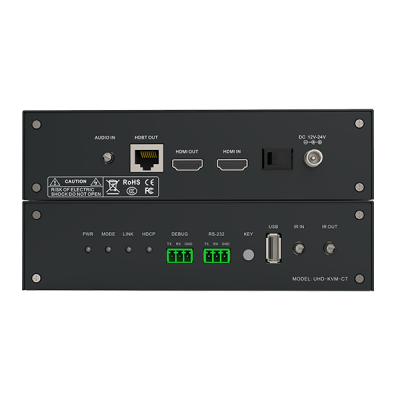

4K@60Hz Ultra HD network extender
UHD-KVM-CT/CR(NT/NR),The network extender uses CAT6/CAT7 network cable to extend the HDMI signal to 150 meters,support HDBaseT 2.0 standard, realize the function of zero-latency uncompressed long-distance signal transmission between the signal source and the display device.The device supports remote KVM function. The transmitter and receiver have USB slave interface and USB host interface respectively. It also supports the transmission of two-way infrared control signals (NT/NR does not support infrared) and two-way RS-232 control signals, breaking the distance limit , Remote management is more convenient.
Features
Support Ultra HD resolution 4Kx2K@60Hz 4:4:4;
Support HDBaseT 2.0, use CAT6/7 network cable for transmission distance up to 150meters, 4K@60Hz can transmit 100 meters;
Compatible with HDMI2.0 and HDCP2.2 standard protocols;
Support buttons, two-way USB 2.0, RS-232 serial port and infrared transparent transmission control (UHD-KVM-NT/NR does not support Infrared function);
Support POC, POE power supply mode (optional);
Support audio embedding and de-embedding functions;
Supports high-definition audio formats such as LPCM2/5.1/7.1CH, Dolby Digital, DTS,
Dolby TrueHD, DTS-HD Master Audio;

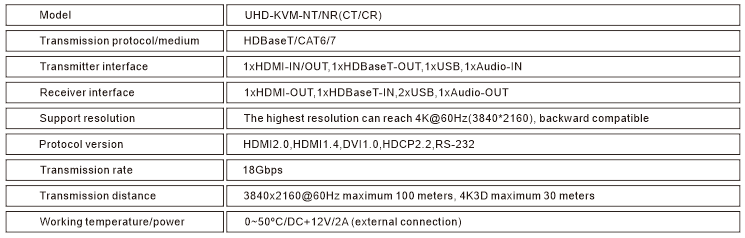

Technical parameter

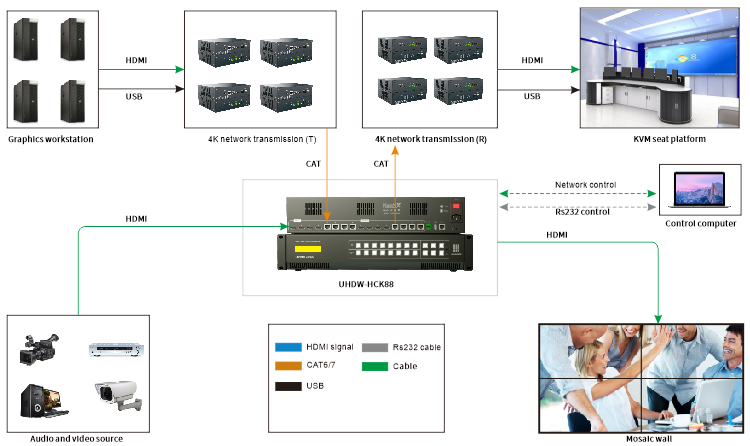

Application Example
