2021-11-04 16:14:01   299

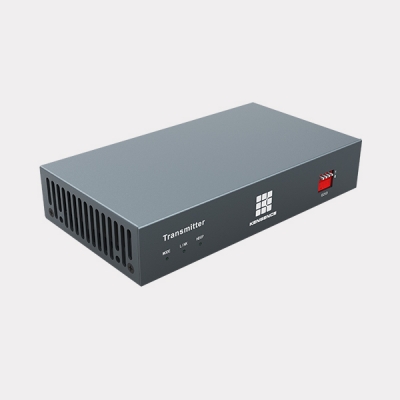

HDBT network transmitter, which can transmit HDMI, IR, and two-way RS-232 signals through a single network cable for 70 meters, and supports a maximum resolution of 4K@30Hz. It is specially developed for long-distance transmission of high-definition digital video signals, audio and control signals. Design a convenient and efficient solution, support single-ended POC power supply, and meet the needs of different users for audio and visual control integration.

  • Brand : KENSENCE
  • Model :
  • Price : Discuss personally

Product Description

HDBT network transmitter, which can transmit HDMI, IR, and two-way RS-232 signals through a single network cable for 70 meters, and supports a maximum resolution of 4K@30Hz. It is specially developed for long-distance transmission of high-definition digital video signals, audio and control signals. Design a convenient and efficient solution, support single-ended POC power supply, and meet the needs of different users for audio and visual control integration.


Product Feature

  • Transmit the signal through the network;

  • Support RS232, IR signal two-way communication;

  • Support POC power supply, support the highest resolution 4K@30Hz;

  • Support HDMI1.4, HDCP2.2 protocol; support EDID dialing function;

  • Support signal transmission distance of 70 meters, support on-site transmission effect adjustment;

  • Support multiple color spaces, support video conversion and frequency multiplication function;

  • Support common resolutions under various input signal formats, and support common signal

     formats of VESA and HDTV;


Technical Parameters


Model

CAT-HDMI-70NT

CAT-HDMI-70NR

Input

HDMI,IR,RS232 Signal input

70M twested pair signal input

Output

70M twested pair signal Output

HDMI,IR,RS232 Signal Output

Resolution

800x600, 1024x768, 1280x720, 1280x800, 1280x1024,1360x768,1366x768,  1440x900, 1440x1050, 1600x1200, 1680x1050, 1680×1050, 1920x1080, 1920x1200,up to 4K@30Hz

Transmission distance

1080P@60Hz resolution 70M,4K@30Hz resolution 30M

Voltage

DC 12V-24V

Weight

About 0.5Kg

Power consumption

≤10W
