2022-01-07 16:19:35   552

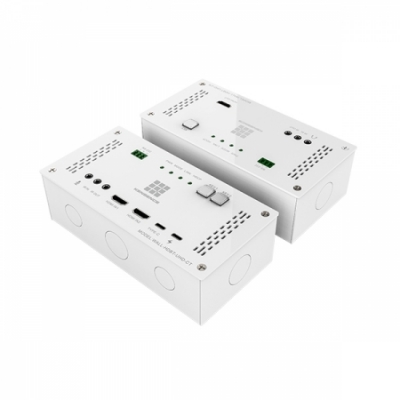

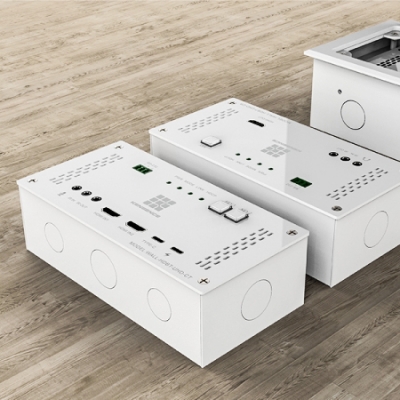

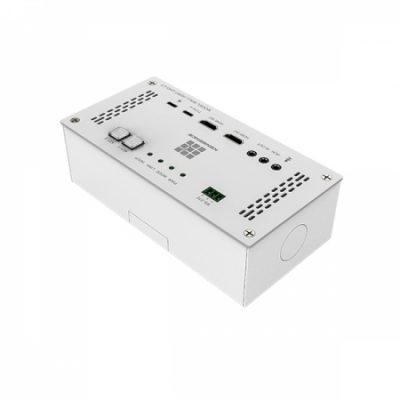

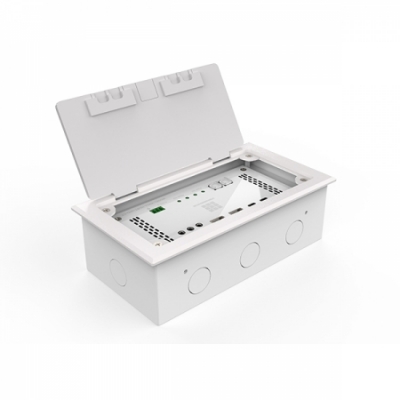

This product is an embedded (wall plug/ground plug) network transmitter. The product includes a transmitter and a receiver. The transmitter supports HDMI, TYPE-C, Audio signal input, and the receiver supports HDMI, Audio signal output, and audio The signal embedding and de-embedding function supports POC power supply. It can transmit 4K@60Hz signals for 100 meters and 1080P@60Hz signals for 150 meters through a single network cable, which can be applied to any high-definition digital video system to meet the needs of users for ultra-clear experience.

  • Brand : KENSENCE
  • Model :
  • Price : Discuss personally

Product Description

This product is an embedded (wall plug/ground plug) network transmitter. The product includes a transmitter and a receiver. The transmitter supports HDMI, TYPE-C, Audio signal input, and the receiver supports HDMI, Audio signal output, and audio The signal embedding and de-embedding function supports POC power supply. It can transmit 4K@60Hz signals for 100 meters and 1080P@60Hz signals for 150 meters through a single network cable, which can be applied to any high-definition digital video system to meet the needs of users for ultra-clear experience.


Product Feature

  • Support RS232 transparent transmission;

  • Using twisted pair CAT6 instead of HDMI cable to achieve long-distance signal transmission, 4K@60Hz signal can be transmitted up to 100 meters, 1080P can be up to 150 meters, and it supports automatic adjustment of the applicable network cable length;

  • Support 640x480/60HZ~3840x2160/60Hz resolution input and output;

  • Support button adjustment of output resolution, support button system reset;

  • Dual TYPE-C interface design, 1 channel is TYPE-C signal input terminal, 1 channel is power output;

  • Support button switch signal source port;

  • POC mode power supply.



Technical Parameters

Product number

WALL-HDBT-UHD-CT/R

Resolution

Support the highest resolution 4K@60Hz (backward compatible)

Transmit/receive port

transmitterHDMI INx2,TYPE-Cx2,IR INx1, IR OUTx1,RS232x1,AUDIO INx1

receiverHDMI OUTx1, IR INx1, IR OUTx1,RS232x1,AUDIO OUTx1

Transmission distance

4k@60Hz100m1080P@60Hz150m

Power/power consumption

DC 12-24V/9.6W

Standard agreement

HDMI2.0DVI1.0HDCP2.2

size

172x86x45mm

Transmission medium

CAT6
