Product Description

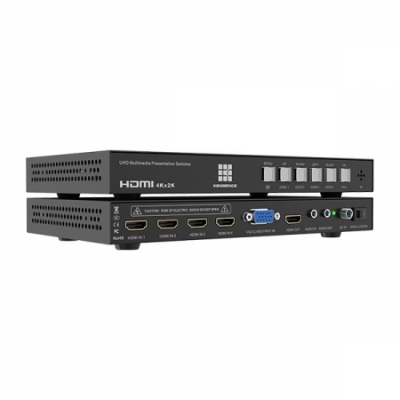

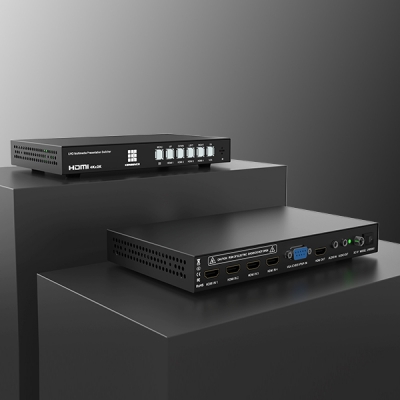

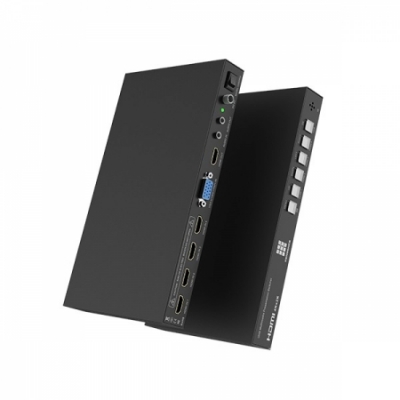

UHD0501 is a converter that supports 4K@60Hz 4:4:4 ultra-high-definition signal input and output, supports 4 HDMI + 1 VGA/CVBS/YPbPr signal input, supports 1 HDMI signal output, and supports audio embedding and de-embedding Function, can be widely used in video conference system, multimedia signal broadcasting and other fields.
Product Feature
Support audio embedding and de-embedding;
upport key switch/infrared remote control switch;
Support 4K@60Hz 4:4:4 ultra-high resolution input and output；
Support VGA/CVBS/YPBPR signal to HDMI signal output;
Pure hardware design, plug and play, stable and efficient, working 24 hours a day, 7 days a week;
Support 4 HDMI+1 VGA/CVBS/YPBPR signal input, 1 HDMI signal output.
Technical Parameters
Product number | UHD0501 |
product name | 4K@60HzUHD Converters |
input interface | HDMIx4，VGAx1，AUDIOx1 |
Output Interface | HDMIx1，AUDIOx1 |
Color space | Support RGB444, YUV and other color spaces |
control | Support button and infrared remote control |
protocol | Support HDMI2.0, USB2.0 protocol |
Resolution | Maximum support 4K@60Hz resolution |
power supply | DC 5V 2A |
Storage/working temperature | -10～50ºC/-25～55ºC |
size | 142x44x154（mm） |
Power consumption | ≤10W |
