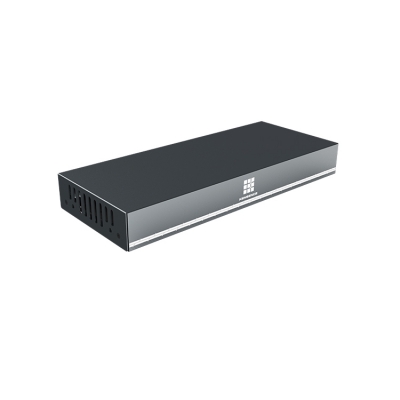

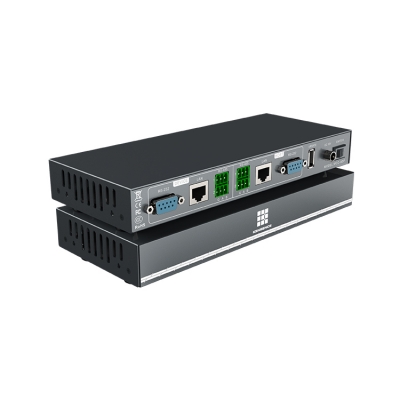

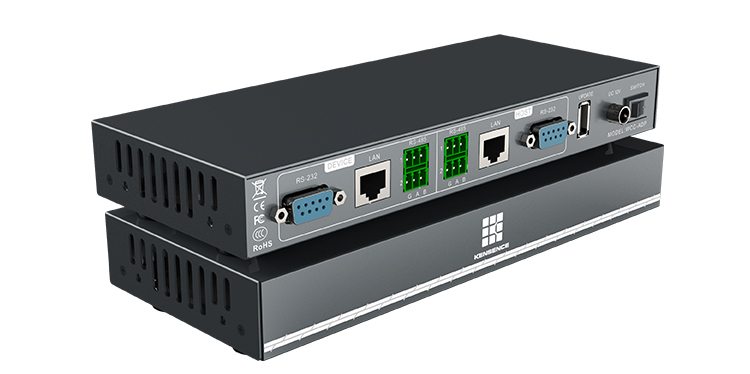

The WCC-ADP Ethernet Converter is a protocol gateway that enables data exchange between different communication formats and baud rates. The The WCC-ADP Ethernet Converter device supports bidirectional conversion and data transmission between the HOST side and DEVICE side via Ethernet (RJ-45) and serial ports (RS-232/RS-485). It allows flexible and convenient integration of serial devices into networks while simultaneously supporting different serial port types for seamless communication.
WCC-ADP Ethernet Converter Product features
1 way RS-232/485(DEVICE end), support 115200bps and below,RS-232 or RS-485 can be configured freely;
1 way RJ-45 interface (DEVICE end), 100m, supports TCP/UDP client;
1 way RS-232/485(HOST end), supporting 115200bps;
1 way RJ-45 interface(HOST end), 100m, supports UDP client, can realize remote control;
1 way RJ-45 interface (DEVICE end), 100m, supports TCP/UDP client;
1 way RS-232/485(HOST end), supporting 115200bps;
1 way RJ-45 interface(HOST end), 100m, supports UDP client, can realize remote control;
1 way USB2.0 interface, used to connect a computer to set up the control host and upgrade the network;
