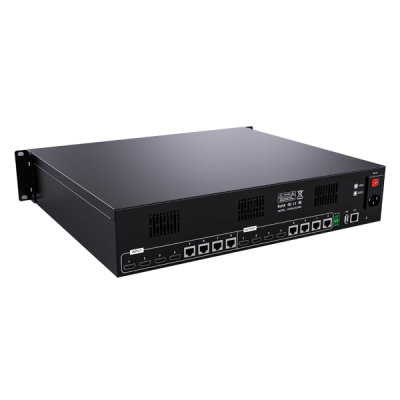

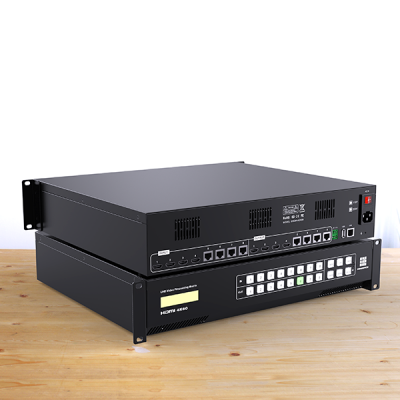

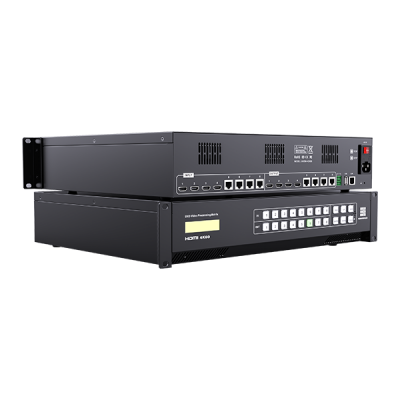

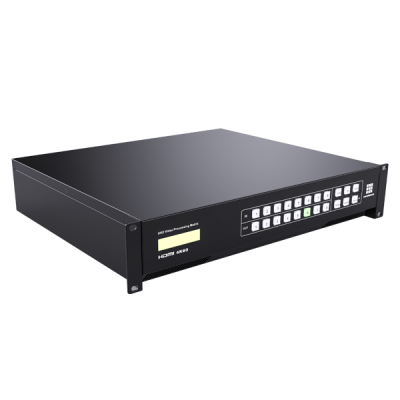

Ultra HD Matrix Splicing and Controlling All-in-one Machine
UHDW-HCK88 is a multi-functional ultra-high-definition matrix and control all-in-one machine,which has the function of a matrix switcher and supports 4-screen/8-screen splicing display. It is a high-performance, high-bandwidth intelligent switching distribution device specially designed for ultra-high-definition video display systems. The device supports 4 HDMI/HDBaseT signal input/output, the highest resolution is up to 4Kx2k@60Hz, and the front panel LED screen can display the real-time status of the device, which can be controlled by the front panel buttons, serial port,network port, infrared remote control, etc. Fast ultra-clear full digital switching, can support KVM remote control; suitable for any high-definition digital video system, to meet the needs of users for ultra-clear experience.
Features
Support 4 screen/8 screen splicing display;
Support panel buttons, IR infrared, RS232 commands and TCP/IP network port control;
Support resolution up to 4K x 2K@60Hz, support 1080P 3D;
With intelligent resolution management function, the output resolution can be adjusted through RS232 command and PC;
Integrate a variety of control protocols, which can be used with various central control equipment conveniently and quickly;
Can provide on-site remote support and customization of user special functions;Fast ultra-clear all-digital switching;
Support USB firmware online upgrade;
Support LCD or LED screen to display system status in real time;
Support HDMI 2.0, compatible with HDCP2.2 protocol and backward compatible;
Support HDBASET 2.0, compatible with HDCP2.2 protocol and backward compatible;
Transmission 4Kx2K@60Hz 4:4:4, HDMI signal transmission ≥ 5 meters, HDBASET signal transmission ≥ 100 meters;
Support input HDCP follow, output support HDCP management, command control;
Support RS232 transparent transmission;
Support KVM remote control;
Powerful storage function, can store and call multiple pre-stored switching modes; with power-down memory function, with power-off on-site protection function;

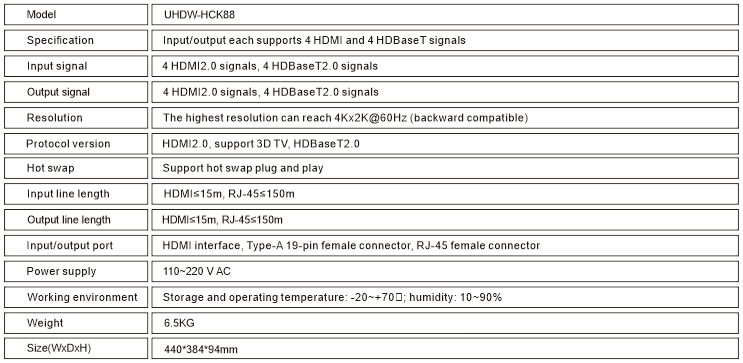

Technical parameter

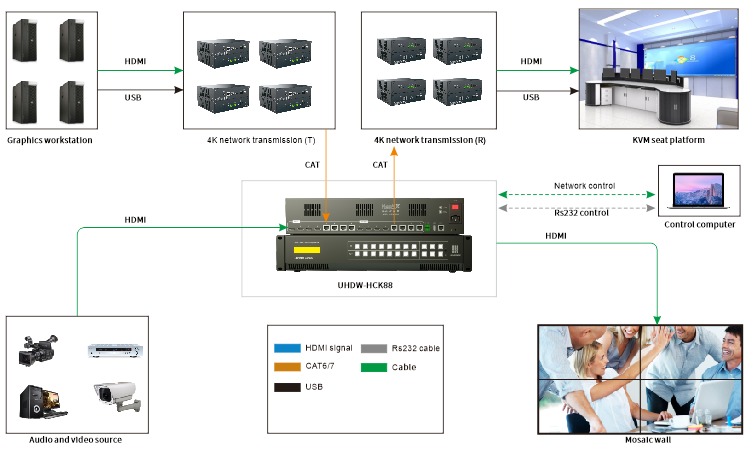

Application Example
