Product overview

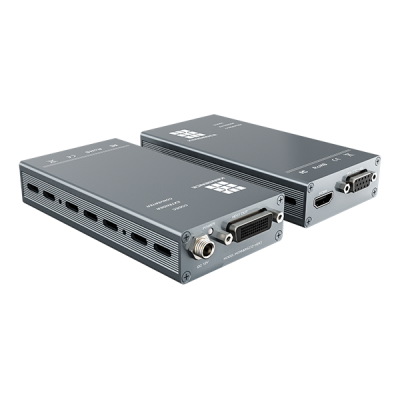

HDMI/RS232-TO-HDCI HDMI converter are signal conversion equipment,is specially designed for POLYCOM company's high-definition video conference system research and development, mainly used to connect high-definition Eagle Eye camera and high-definition host, using 60 pin interface, solve the problem of multiple POLYCOM eagle eye cameras connecting to the matrix, support HDCI/HDMI signal mutual conversion, support RS232 signal transmission, support maximum resolution 1080P@60Hz, can be used with Kensence HDCI network transmission.
Features
Support the mutual conversion of HDCI and HDMI signals;
Support maximum resolution 1080P@60Hz;
Support RS232 signal transmission;
Support RGB444, YUV444, YUV422 x.v extended color gamut standards;
Specification
Signal format | Support HDCI signal into HDMI&RS232 signal HDMI converter |
Protocol | Support HDMI 1.4 |
Resolution | 26 common resolution outputs below 1080P@60Hz can be fixed |
Color space | Support RGB444, YUV444, YUV422 x.v extended color gamut standards |
Size | 102x25x79（mm） |
