EDID Technology in 4K Matrix Switchers

2025-06-05 14:52:44 yuanqj@avctime.cn 3

4K matrix switchers, as important video signal management devices, are widely used in many fields. EDID technology, as an indispensable part of 4K matrix switchers like the “MCS-ANY-16, UHDW-HDMI44/88-PRO, KX-HD0404/0808S, UHDW-HDMI44/88”, plays a key role in ensuring stable video signal transmission and high-quality display.

What is EDID Technology?

EDID, which stands for Extended Display Identification Data, is a standard data format for transmitting device information between video devices. It stores key information about displays and other display devices, such as supported resolutions, refresh rates, color spaces, as-pect ratios, and more. This information is encoded in a 128-byte data block, which is automatically sent to the signal source (like a 4K matrix switcher) when a display device is connected.

The signal source reads the EDID data to understand the parameters and capabilities of the display device, allowing it to adjust the output signal to suit the display device's optimal display state. For example, when a 4K matrix switcher receives EDID information from different displays, it can convert the input video signal and output it in a resolution format that the display can perfectly render, ensuring clear and distortion-free images.

The Key Role of EDID Technology in 4K Matrix Switchers

Ensuring Video Signal Compatibility

4K matrix switchers often need to connect to various display devices of different brands and models, each with vastly different display parameters. EDID technology allows the 4K matrix switcher to automatically recognize the characteristics of each display device, avoiding issues of no image, image distortion, or display anomalies caused by signal incompatibility. Whether connecting to high-resolution 4K displays or professional monitors with specific refresh rates, the 4K matrix switcher can ensure seamless signal matching based on EDID information.

Optimizing Video Display Quality

By reading the detailed information in the EDID, the 4K matrix switcher can perform targeted optimization on the video signal. For instance, for display devices that support wide color gamuts, the matrix switcher can adjust the color output of the video signal to fully utilize the device's color representation capabilities, yielding richer and more realistic colors. Additionally, based on the supported refresh rates of the display devices, the switcher can adjust the frame rate of the video signal to reduce stuttering and ghosting, enhancing the fluidity of dynamic images.

Simplifying System Configuration and Management

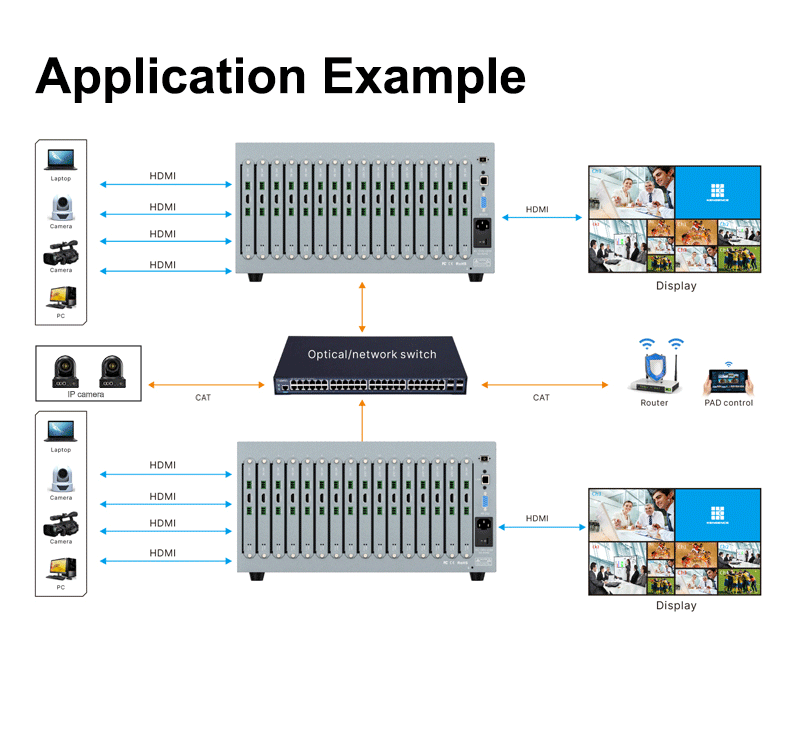

In complex application scenarios such as large video surveillance systems or multimedia display centers, there often exists a multitude of display devices. Manually configuring the signal parameters between each display device and the 4K matrix switcher not only consumes time and effort but also increases the likelihood of errors. The application of EDID technology allows the system to automatically complete parameter matching between devices, greatly simplifying the system configuration process. Administrators only need to connect the display devices to the 4K matrix switcher, and the system will automatically adapt based on EDID information, improving the efficiency of system deployment and management.

Challenges Faced by EDID Technology and Response Strategies

Despite the numerous advantages EDID technology brings to 4K matrix switchers, it also faces some challenges in practical applications. For example, the EDID data of some older display devices may be incomplete or inaccurate, leading the 4K matrix switcher to incorrectly recognize device parameters and affecting display quality. Additionally, in complex environments with multiple connected devices, the transmission and parsing of EDID data may en-counter conflicts or delays.

To address these challenges, manufacturers continuously improve the EDID management capabilities of 4K matrix switchers. On one hand, they have added error correction and repair mechanisms for EDID data; when incomplete or erroneous EDID data is detected, the switcher can attempt to automatically repair it or use default generic parameters for adaptation, ensuring that the display device can still function properly. On the other hand, they have optimized the transmission and parsing algorithms for EDID data, improving data processing speed and reducing the likelihood of conflicts, thereby ensuring the stable operation of the system in complex environments.

As one of the core technologies for 4K matrix switchers to achieve efficient, stable video signal transmission and high-quality display, the importance of EDID technology is undeniable. With the continuous development of video technology, EDID technology will continue to evolve, providing solid support for the wider application of 4K matrix switchers in various fields, and helping to create a better and more convenient video display experience.
