Matrix Switcher vs. Video Wall Processor: Key Differences

2025-05-20 16:38:18 yuanqj@avctime.cn 6

Working Principle

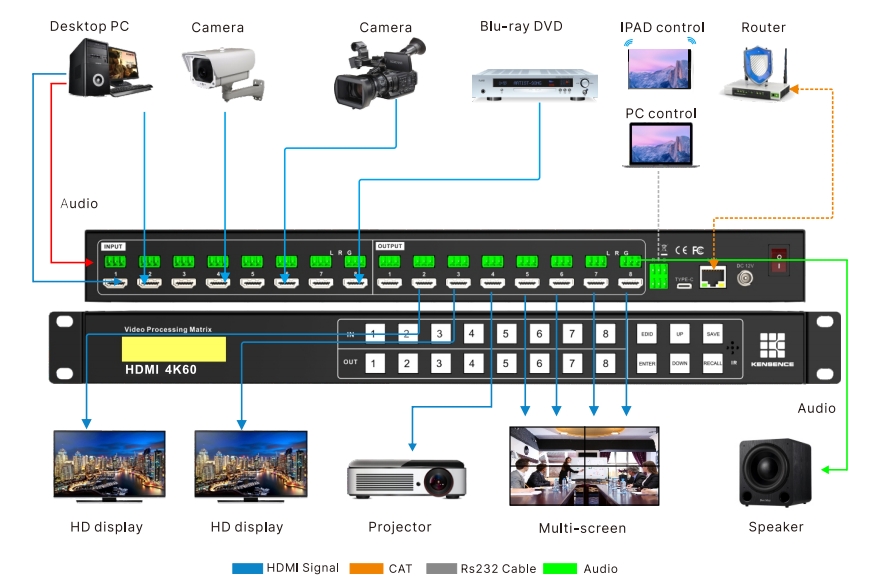

Matrix Switcher:

Primarily routes multiple input signals to multiple display devices, where the number of input signals usually exceeds the number of outputs. For example, in a surveillance system with numerous cameras as input sources and relatively fewer display monitors, the matrix switcher allows different camera feeds to be cycled through and displayed on the available screens. It acts like a signal dispatcher, directing different signals to designated display terminals without processing the signals—only switching and distributing them.

Video Wall Processor:

Splits a single complete video signal into N segments and distributes them to N display units (e.g., LED, LCD, DLP) to achieve a seamless, large-scale composite image on a logically tiled screen. For instance, a massive advertising display in a shopping mall uses a video wall processor to divide a full video signal and distribute it across multiple smaller screens, creating a unified, dynamic large-format display.

Functional Features

Matrix Switcher:

Basic Switching Function: Core capability is signal switching, allowing any input signal to be routed to any output channel, enabling cyclic display of different sources on various monitors.

Signal Format Support: Compatible with multiple formats (e.g., VGA, AV, DVI, HDMI, RGB) to Employ to diverse sources and displays.

Simple Control: Typically supports manual buttons, IR remote, RS-232, or network-based control for user-friendly signal switching.

Video Wall Processor:

Seamless Tiling: Combines multiple display units into a single logical screen for a continuous, uninterrupted image.

Advanced Display Functions: Beyond basic tiling, supports features like arbitrary windowing, roaming, overlay, scene presets, and rotation. Users can freely resize/reposition windows or superimpose multiple signals.

Image Optimization: Auto-adjusts brightness, contrast, and chroma while employing edge-blending techniques to ensure uniformity and optimal visual quality.

Application Scenarios

Matrix Switcher:

Surveillance Systems: In compact monitoring rooms, operators cycle through multiple camera feeds on limited displays via the switcher.

Multimedia Conference Rooms: Switches between PCs, DVD players, or cameras for presentations on projectors/TVs.

Video Wall Processor:

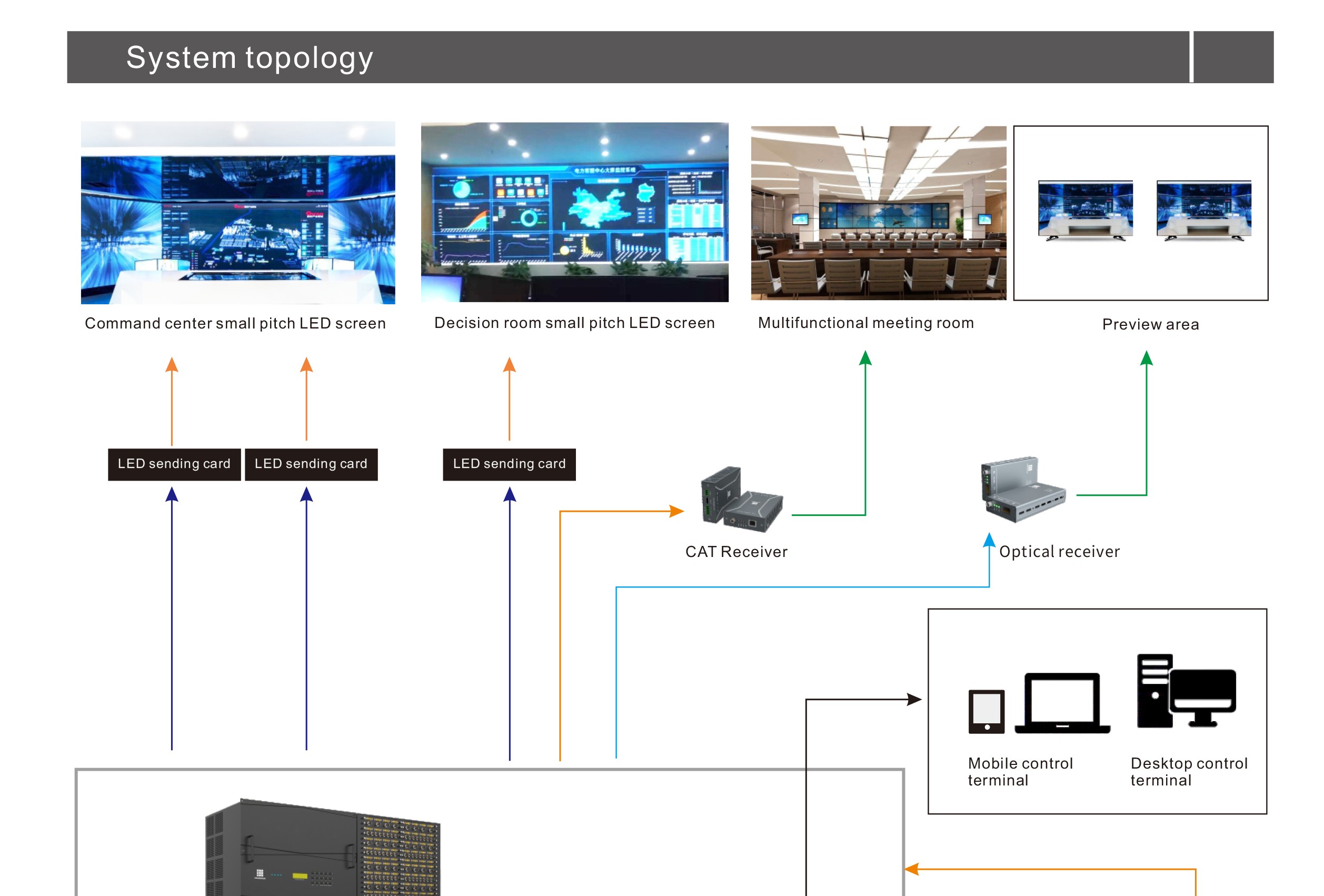

Command Centers: Used in traffic/power grid control hubs to unify and manage disparate data/feeds on a large screen.

Exhibition Spaces: Museums or trade shows deploy tiled displays for immersive visuals, with the processor ensuring flawless stitching.

Matrix Switcher:

Features multiple input/output ports (e.g., HDMI, DVI, VGA) matching supported signal types.

Front panel includes status LEDs, basic controls (buttons/knobs), and sometimes cooling vents.

Video Wall Processor:

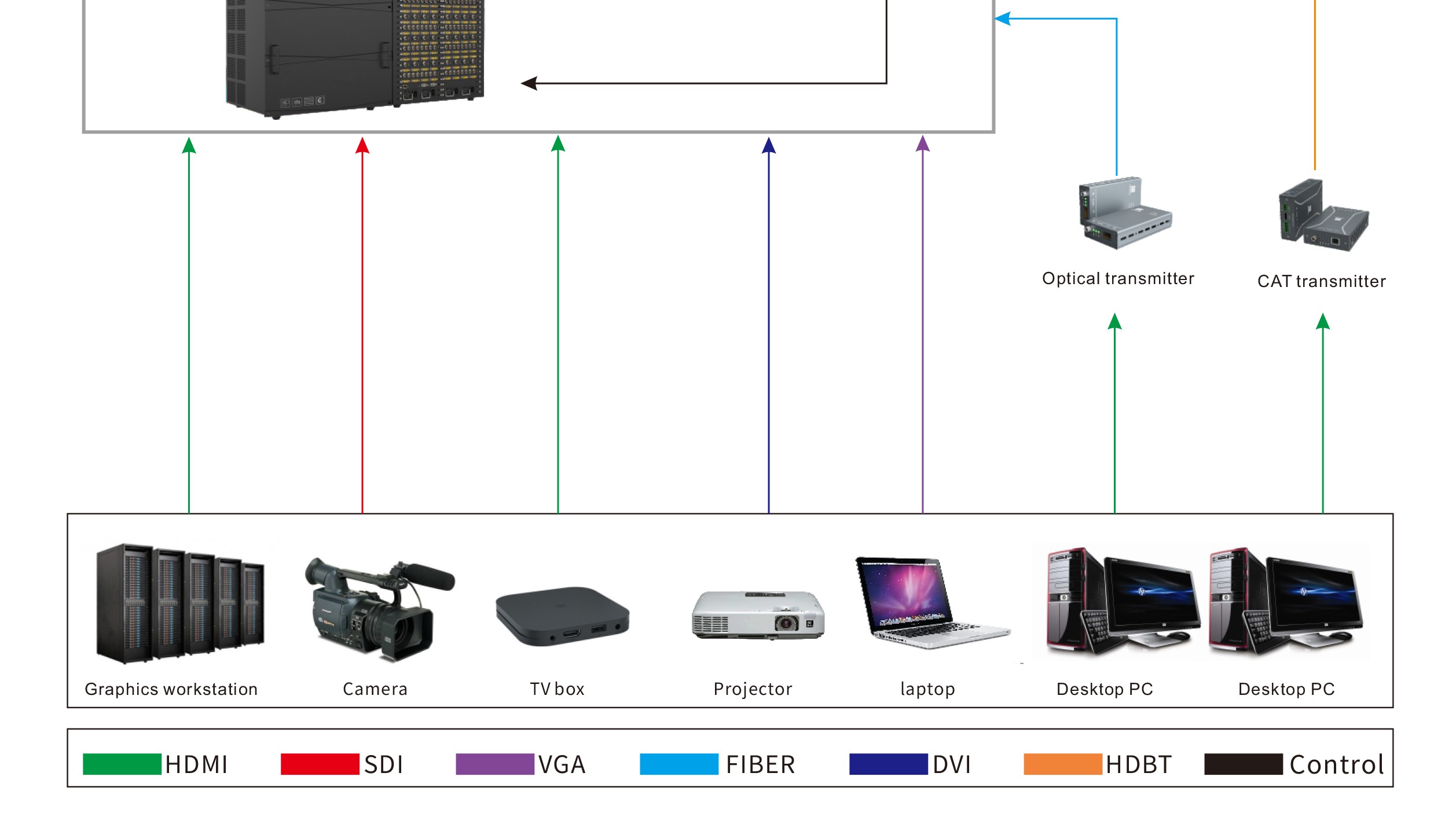

Equipped with abundant I/O ports for multi-source input and multi-display output.

Emphasizes heat dissipation due to high video processing loads. May include network ports for remote management.
